Прямой переходник BSP (штуцер с ED) — BSP60 (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-6 Норма соединения 2: ISO 1179-2 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба BSP, цилиндрическая Форма уплотнения 1: Форма E Форма уплотнения 2: Внутренний конус 60°

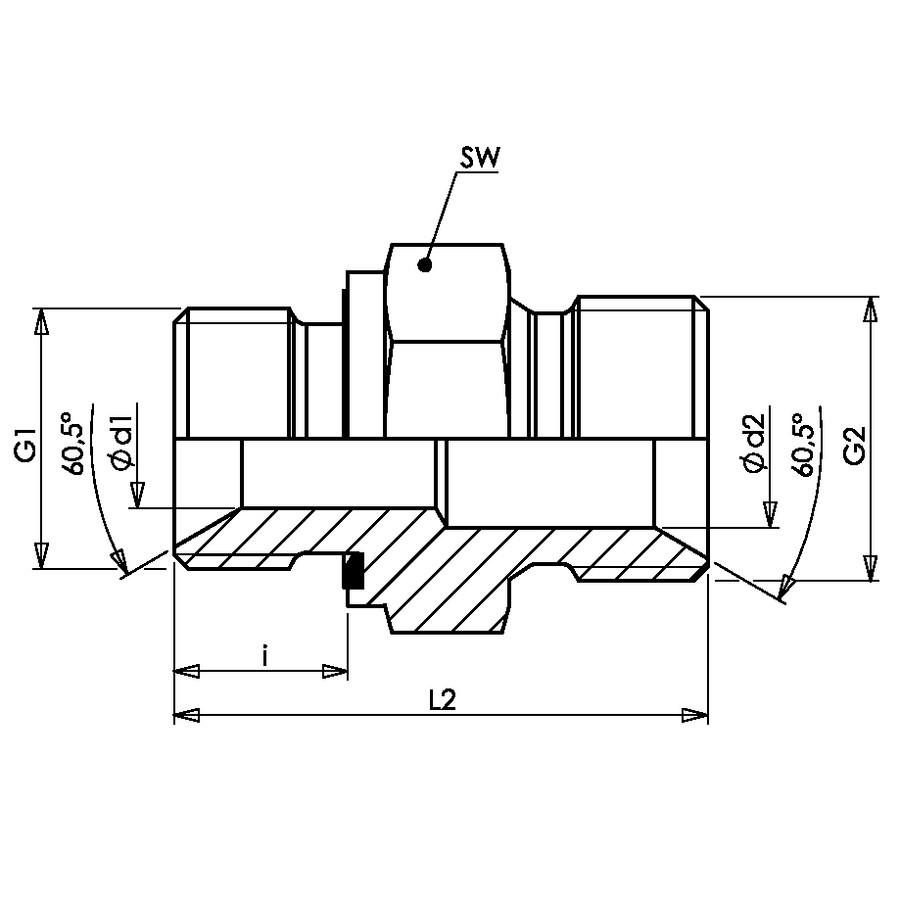

Code	G1	G2	L1	L2	SW
AD.BSP(M)1/8.BSP60(M)1/8.ED	G 1/8" -28	G 1/8" -28	24	22,5	14
AD.BSP(M)1/4.BSP60(M)1/8.ED	G 1/4" -19	G 1/8" -28	28,5	29	19
AD.BSP(M)1/4.BSP60(M)1/4.ED	G 1/4" -19	G 1/4" -19	33	32	19
AD.BSP(M)1/4.BSP60(M)3/8.ED	G 1/4" -19	G 3/8" -19	34,5	33	19
AD.BSP(M)3/8.BSP60(M)1/4.ED	G 3/8" -19	G 1/4" -19	33,5	33,5	22
AD.BSP(M)3/8.BSP60(M)3/8.ED	G 3/8" -19	G 3/8" -19	35	34,5	22
AD.BSP(M)3/8.BSP60(M)1/2.ED	G 3/8" -19	G 1/2" -14	38,5	36,5	22
AD.BSP(M)1/2.BSP60(M)3/8.ED	G 1/2" -14	G 3/8" -19	37,5	39	27
AD.BSP(M)1/2.BSP60(M)1/2.ED	G 1/2" -14	G 1/2" -14	41	41	27
AD.BSP(M)1/2.BSP60(M)5/8.ED	G 1/2" -14	G 5/8" -14	43	43	27
AD.BSP(M)1/2.BSP60(M)3/4.ED	G 1/2" -14	G 3/4" -14	45	43	27
AD.BSP(M)3/4.BSP60(M)1/2.ED	G 3/4" -14	G 1/2" -14	43	45	32
AD.BSP(M)3/4.BSP60(M)3/4.ED	G 3/4" -14	G 3/4" -14	47	47	32
AD.BSP(M)3/4.BSP60(M)1.ED	G 3/4" -14	G 1" -11	51	50	36
AD.BSP(M)1.BSP60(M)3/4.ED	G 1" -11	G 3/4" -14	49	51	41
AD.BSP(M)1.BSP60(M)1.ED	G 1" -11	G 1" -11	53	54	41
AD.BSP(M)1-1/4.BSP60(M)1.ED	G 1.1/4" -11	G 1" -11	55	58	50
AD.BSP(M)1-1/4.BSP60(M)1-1/4.ED	G 1.1/4" -11	G 1.1/4" -11	58	59	50
AD.BSP(M)1-1/2.BSP60(M)1-1/2.ED	G 1.1/2" -11	G 1.1/2" -11	64	64	55
