Прямой переходник BSP (штуцер с OR) — BSP60 (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-6 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба BSP, цилиндрическая Форма уплотнения 1: Кольцо круглого сечения Форма уплотнения 2: Внутренний конус 60°

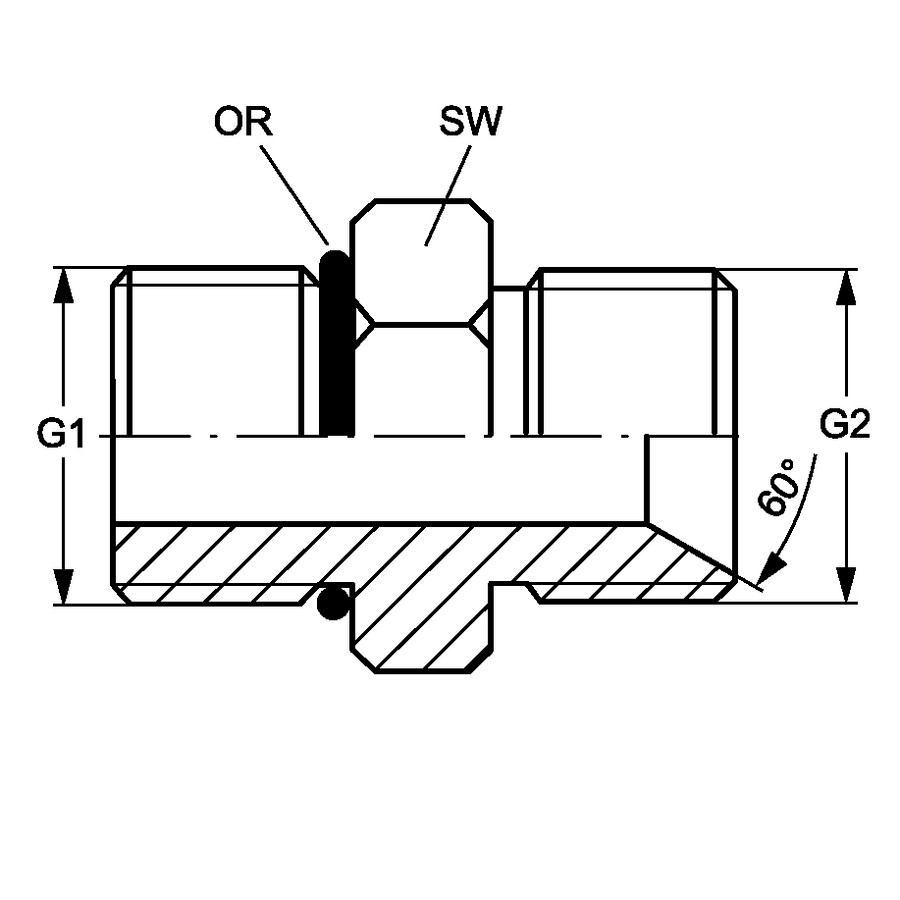

Code	OR	G1	G2	SW
AD.BSP(M)1/8.BSP60(M)1/8.OR	7.65 x 1.78	G 1/8" -28	G 1/8" -28	20
AD.BSP(M)1/4.BSP60(M)1/8.OR	10.78 x 2.62	G 1/4" -19	G 1/8" -28	20
AD.BSP(M)1/4.BSP60(M)1/4.OR	10.78 x 2.62	G 1/4" -19	G 1/4" -19	20
AD.BSP(M)1/4.BSP60(M)3/8.OR	10.78 x 2.62	G 1/4" -19	G 3/8" -19	19
AD.BSP(M)3/8.BSP60(M)1/4.OR	13.94 x 2.62	G 3/8" -19	G 1/4" -19	24
AD.BSP(M)3/8.BSP60(M)3/8.OR	13.94 x 2.62	G 3/8" -19	G 3/8" -19	24
AD.BSP(M)3/8.BSP60(M)1/2.OR	13.94 x 2.62	G 3/8" -19	G 1/2" -14	29
AD.BSP(M)1/2.BSP60(M)3/8.OR	17.86 x 2.62	G 1/2" -14	G 3/8" -19	29
AD.BSP(M)1/2.BSP60(M)1/2.OR	17.86 x 2.62	G 1/2" -14	G 1/2" -14	28
AD.BSP(M)1/2.BSP60(M)5/8.OR	17.86 x 2.62	G 1/2" -14	G 5/8" -14	29
AD.BSP(M)1/2.BSP60(M)3/4.OR	17.86 x 2.62	G 1/2" -14	G 3/4" -14	29
AD.BSP(M)3/4.BSP60(M)1/2.OR	23.47 x 2.62	G 3/4" -14	G 1/2" -14	35
AD.BSP(M)3/4.BSP60(M)3/4.OR	23.47 x 2.62	G 3/4" -14	G 3/4" -14	35
AD.BSP(M)3/4.BSP60(M)1.OR	23.47 x 2.62	G 3/4" -14	G 1" -11	43
AD.BSP(M)1.BSP60(M)3/4.OR	29.74 x 3.53	G 1" -11	G 3/4" -14	43
AD.BSP(M)1.BSP60(M)1.OR	29.74 x 3.53	G 1" -11	G 1" -11	43
AD.BSP(M)1-1/4.BSP60(M)1.OR	37.69 x 3.53	G 1.1/4" -11	G 1" -11	53
AD.BSP(M)1-1/4.BSP60(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	G 1.1/4" -11	53
AD.BSP(M)1-1/2.BSP60(M)1-1/2.OR	44.04 x 3.53	G 1.1/2" -11	G 1.1/2" -11	58
