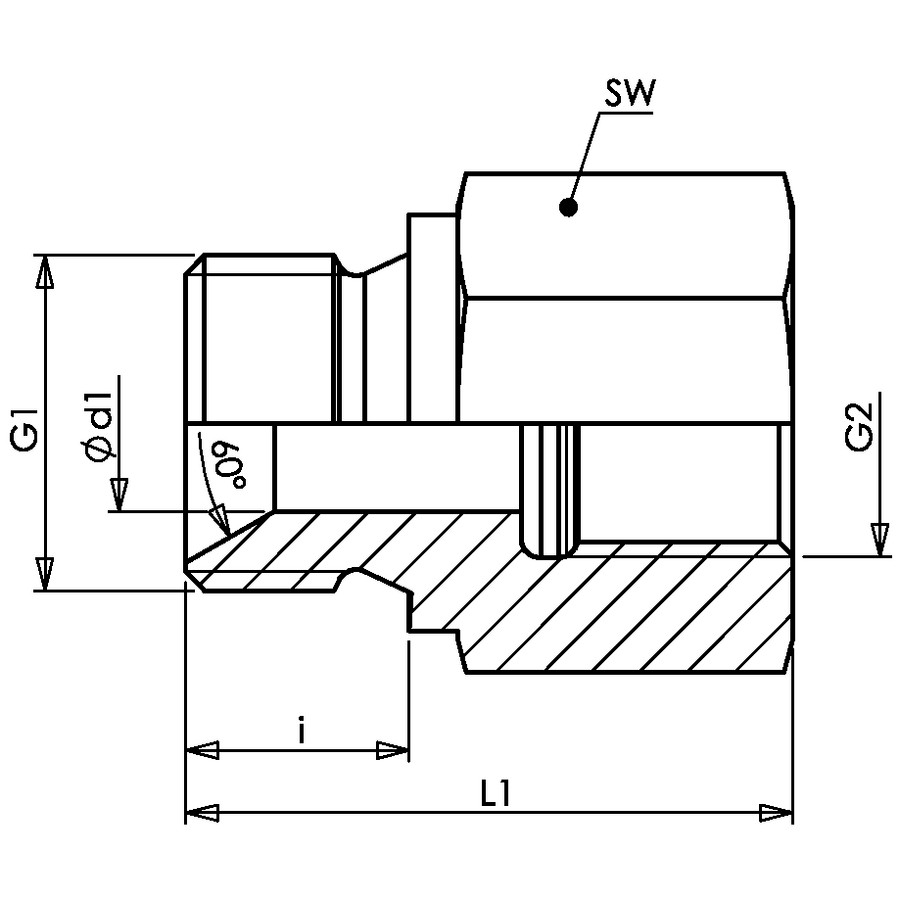

Прямой переходник BSP (внутренняя резьба) — BSP60 (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Навинчиваемый штуцер Норма: ISO 8434-6 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Внутренняя резьба BSP, цилиндрическая Форма уплотнения 1: Внутренний конус 60° Форма уплотнения 2: Плоское уплотнение

Code	G1	G2	SW
AD.BSP(IN)1/8.BSP60(M)1/8	G 1/8" -28	G 1/8" -28	14
AD.BSP(IN)1/4.BSP60(M)1/8	G 1/8" -28	G 1/4" -19	19
AD.BSP(IN)1/8.BSP60(M)1/4	G 1/4" -19	G 1/8" -28	19
AD.BSP(IN)1/4.BSP60(M)1/4	G 1/4" -19	G 1/4" -19	19
AD.BSP(IN)3/8.BSP60(M)1/4	G 1/4" -19	G 3/8" -19	22
AD.BSP(IN)1/2.BSP60(M)1/4	G 1/4" -19	G 1/2" -14	27
AD.BSP(IN)1/8.BSP60(M)3/8	G 3/8" -19	G 1/8" -28	22
AD.BSP(IN)1/4.BSP60(M)3/8	G 3/8" -19	G 1/4" -19	22
AD.BSP(IN)3/8.BSP60(M)3/8	G 3/8" -19	G 3/8" -19	22
AD.BSP(IN)1/2.BSP60(M)3/8	G 3/8" -19	G 1/2" -14	27
AD.BSP(IN)1/8.BSP60(M)1/2	G 1/2" -14	G 1/8" -28	27
AD.BSP(IN)1/4.BSP60(M)1/2	G 1/2" -14	G 1/4" -19	27
AD.BSP(IN)3/8.BSP60(M)1/2	G 1/2" -14	G 3/8" -19	27
AD.BSP(IN)1/2.BSP60(M)1/2	G 1/2" -14	G 1/2" -14	27
AD.BSP(IN)3/4.BSP60(M)1/2	G 1/2" -14	G 3/4" -14	32
AD.BSP(IN)1/4.BSP60(M)3/4	G 3/4" -14	G 1/4" -19	32
AD.BSP(IN)3/8.BSP60(M)3/4	G 3/4" -14	G 3/8" -19	32
AD.BSP(IN)1/2.BSP60(M)3/4	G 3/4" -14	G 1/2" -14	32
AD.BSP(IN)3/4.BSP60(M)3/4	G 3/4" -14	G 3/4" -14	32
AD.BSP(IN)1.BSP60(M)3/4	G 3/4" -14	G 1" -11	41
AD.BSP(IN)3/8.BSP60(M)1	G 1" -11	G 3/8" -19	41
AD.BSP(IN)1/2.BSP60(M)1	G 1" -11	G 1/2" -14	41
AD.BSP(IN)3/4.BSP60(M)1	G 1" -11	G 3/4" -14	41
AD.BSP(IN)1.BSP60(M)1	G 1" -11	G 1" -11	41
AD.BSP(IN)1-1/4.BSP60(M)1	G 1" -11	G 1.1/4" -11	50
AD.BSP(IN)1/4.BSP60(M)1-1/4	G 1.1/4" -11	G 1/4" -19	50
AD.BSP(IN)1/2.BSP60(M)1-1/4	G 1.1/4" -11	G 1/2" -14	50
AD.BSP(IN)3/4.BSP60(M)1-1/4	G 1.1/4" -11	G 3/4" -14	50
AD.BSP(IN)1.BSP60(M)1-1/4	G 1.1/4" -11	G 1" -11	50
AD.BSP(IN)1-1/4.BSP60(M)1-1/4	G 1.1/4" -11	G 1.1/4" -11	50
AD.BSP(IN)1-1/2.BSP60(M)1-1/4	G 1.1/4" -11	G 1.1/2" -11	60
AD.BSP(IN)3/4.BSP60(M)1-1/2	G 1.1/2" -11	G 3/4" -14	60
AD.BSP(IN)1.BSP60(M)1-1/2	G 1.1/2" -11	G 1" -11	60
AD.BSP(IN)1-1/4.BSP60(M)1-1/2	G 1.1/2" -11	G 1.1/4" -11	60
AD.BSP(IN)1-1/2.BSP60(M)1-1/2	G 1.1/2" -11	G 1.1/2" -11	60
AD.BSP(IN)2.BSP60(M)1-1/2	G 1.1/2" -11	G 2" -11	70
AD.BSP(IN)1.BSP60(M)2	G 2" -11	G 1" -11	70
AD.BSP(IN)1-1/4.BSP60(M)2	G 2" -11	G 1.1/4" -11	70
AD.BSP(IN)1-1/2.BSP60(M)2	G 2" -11	G 1.1/2" -11	70
AD.BSP(IN)2.BSP60(M)2	G 2" -11	G 2" -11	70
