Прямой переходник BSP60 (гайка) — BSP60 (гайка)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Соединители Норма: ISO 8434-6 Соединение 1: Гаечная резьба BSP Соединение 2: Гаечная резьба BSP Форма уплотнения 1: Наружный конус 60° Форма уплотнения 2: Наружный конус 60°

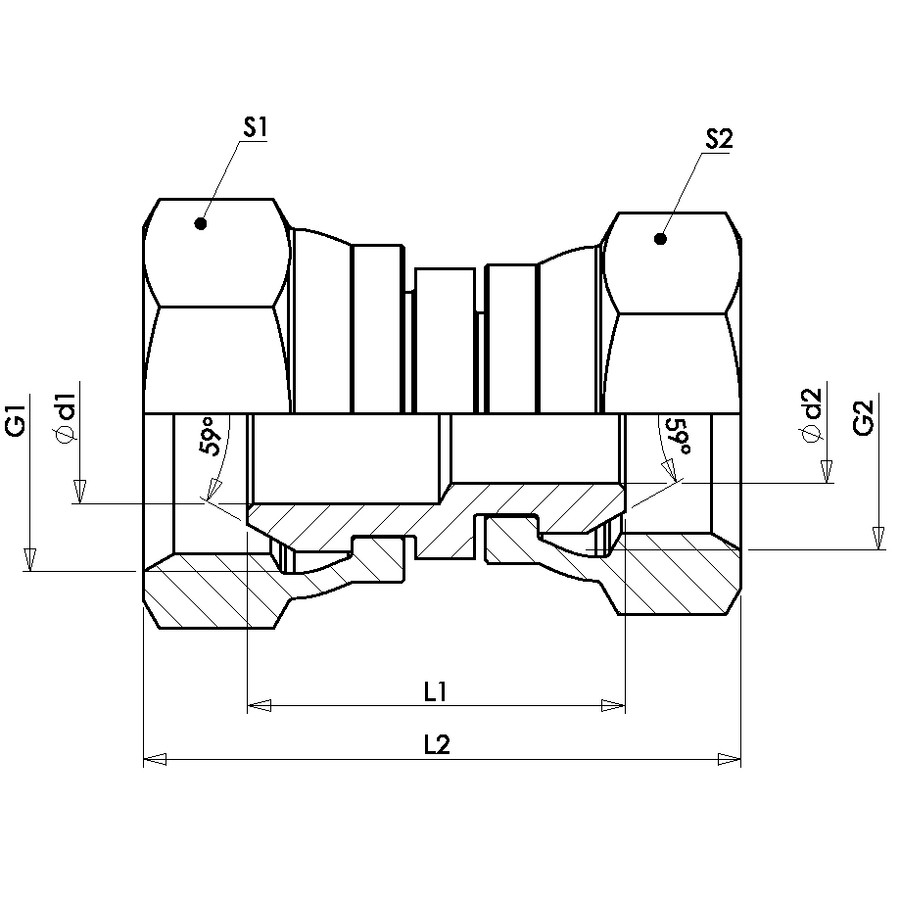

Code	G1	G2	L1	L2	S1	S2
AD.BSP60(F)1/8.BSP60(F)1/8	G 1/8" -28	G 1/8" -28	21	30	14	14
AD.BSP60(F)1/4.BSP60(F)1/8	G 1/4" -19	G 1/8" -28	22	31,5	19	14
AD.BSP60(F)1/4.BSP60(F)1/4	G 1/4" -19	G 1/4" -19	23	33	19	19
AD.BSP60(F)3/8.BSP60(F)1/4	G 3/8" -19	G 1/4" -19	26,5	38	22	19
AD.BSP60(F)3/8.BSP60(F)3/8	G 3/8" -19	G 3/8" -19	26	39	22	22
AD.BSP60(F)1/2.BSP60(F)1/4	G 1/2" -14	G 1/4" -19	29,5	41,5	27	19
AD.BSP60(F)1/2.BSP60(F)3/8	G 1/2" -14	G 3/8" -19	30,5	44	27	22
AD.BSP60(F)1/2.BSP60(F)1/2	G 1/2" -14	G 1/2" -14	31	45	27	27
AD.BSP60(F)5/8.BSP60(F)3/8	G 5/8" -14	G 3/8" -19	30	46,5	30	22
AD.BSP60(F)5/8.BSP60(F)1/2	G 5/8" -14	G 1/2" -14	32	49	30	27
AD.BSP60(F)5/8.BSP60(F)5/8	G 5/8" -14	G 5/8" -14	29	49	30	30
AD.BSP60(F)3/4.BSP60(F)3/8	G 3/4" -14	G 3/8" -19	32,5	48	32	22
AD.BSP60(F)3/4.BSP60(F)1/2	G 3/4" -14	G 1/2" -14	34,5	50,5	32	27
AD.BSP60(F)3/4.BSP60(F)5/8	G 3/4" -14	G 5/8" -14	32,5	30	32	30
AD.BSP60(F)3/4.BSP60(F)3/4	G 3/4" -14	G 3/4" -14	32	50	32	32
AD.BSP60(F)1.BSP60(F)3/8	G 1" -11	G 3/8" -19	37	54,5	41	22
AD.BSP60(F)1.BSP60(F)1/2	G 1" -11	G 1/2" -14	39	57	41	27
AD.BSP60(F)1.BSP60(F)3/4	G 1" -11	G 3/4" -14	37,5	57,5	41	32
AD.BSP60(F)1.BSP60(F)1	G 1" -11	G 1" -11	38	60	41	41
AD.BSP60(F)1-1/4.BSP60(F)1	G 1.1/4" -11	G 1" -11	45,5	67	50	41
AD.BSP60(F)1-1/4.BSP60(F)1-1/4	G 1.1/4" -11	G 1.1/4" -11	47	68	50	50
AD.BSP60(F)1-1/2.BSP60(F)1-1/2	G 1.1/2" -11	G 1.1/2" -11	46	72	60	60
AD.BSP60(F)2.BSP60(F)2	G 2" -11	G 2" -11	51	84	70	70
