Прямой переходник BSP60 (штуцер) — BSP60 (гайка)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Соединители Норма: ISO 8434-6 Соединение 1: Гаечная резьба BSP Соединение 2: Наружная резьба BSP, цилиндрическая Форма уплотнения 1: Наружный конус 60° Форма уплотнения 2: Внутренний конус 60°

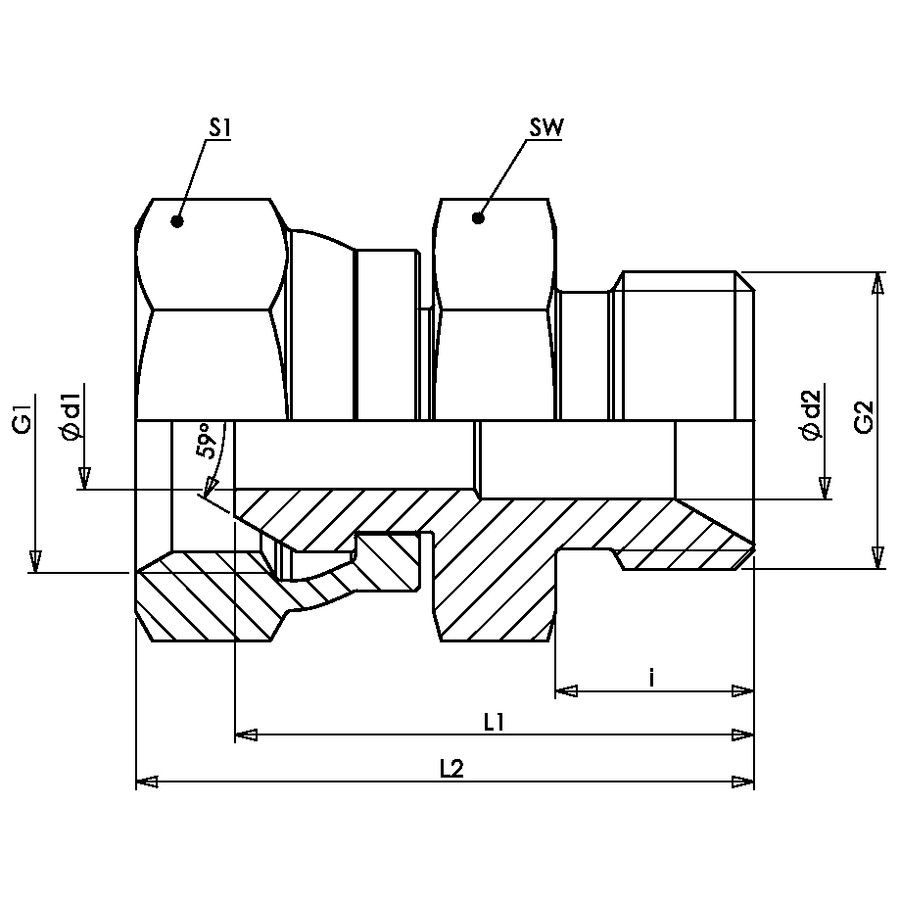

Code	G1	G2	L1	L2	S1	SW
AD.BSP60(M)1/8.BSP60(F)1/8	G 1/8" -28	G 1/8" -28	22	26,5	14	12
AD.BSP60(M)1/4.BSP60(F)1/8	G 1/8" -28	G 1/4" -19	28	32,5	14	17
AD.BSP60(M)1/8.BSP60(F)1/4	G 1/4" -19	G 1/8" -28	23	28	19	12
AD.BSP60(M)1/4.BSP60(F)1/4	G 1/4" -19	G 1/4" -19	31	36	19	17
AD.BSP60(M)3/8.BSP60(F)1/4	G 1/4" -19	G 3/8" -19	33	38	19	19
AD.BSP60(M)1/2.BSP60(F)1/4	G 1/4" -19	G 1/2" -14	35	40	19	22
AD.BSP60(M)1/4.BSP60(F)3/8	G 3/8" -19	G 1/4" -19	30,5	37	22	17
AD.BSP60(M)3/8.BSP60(F)3/8	G 3/8" -19	G 3/8" -19	35	41,5	22	19
AD.BSP60(M)1/2.BSP60(F)3/8	G 3/8" -19	G 1/2" -14	36,5	43	22	22
AD.BSP60(M)3/4.BSP60(F)3/8	G 3/8" -19	G 3/4" -14	42	48,5	22	30
AD.BSP60(M)1/4.BSP60(F)1/2	G 1/2" -14	G 1/4" -19	36	43	27	19
AD.BSP60(M)3/8.BSP60(F)1/2	G 1/2" -14	G 3/8" -19	37	44	27	19
AD.BSP60(M)1/2.BSP60(F)1/2	G 1/2" -14	G 1/2" -14	41	48	27	22
AD.BSP60(M)5/8.BSP60(F)1/2	G 1/2" -14	G 5/8" -14	41	48	27	24
AD.BSP60(M)3/4.BSP60(F)1/2	G 1/2" -14	G 3/4" -14	44,5	51,5	27	30
AD.BSP60(M)1.BSP60(F)1/2	G 1/2" -14	G 1" -11	47,5	54,5	27	36
AD.BSP60(M)3/8.BSP60(F)5/8	G 5/8" -14	G 3/8" -19	36	46	30	22
AD.BSP60(M)1/2.BSP60(F)5/8	G 5/8" -14	G 1/2" -14	38	48	30	22
AD.BSP60(M)5/8.BSP60(F)5/8	G 5/8" -14	G 5/8" -14	42	52	30	24
AD.BSP60(M)3/4.BSP60(F)5/8	G 5/8" -14	G 3/4" -14	43,5	53,5	30	30
AD.BSP60(M)1.BSP60(F)5/8	G 5/8" -14	G 1" -11	46,5	56,5	30	36
AD.BSP60(M)3/8.BSP60(F)3/4	G 3/4" -14	G 3/8" -19	38,5	47,5	32	27
AD.BSP60(M)1/2.BSP60(F)3/4	G 3/4" -14	G 1/2" -14	40,5	49,5	32	27
AD.BSP60(M)5/8.BSP60(F)3/4	G 3/4" -14	G 5/8" -14	42,5	51,5	32	27
AD.BSP60(M)3/4.BSP60(F)3/4	G 3/4" -14	G 3/4" -14	45	54	32	30
AD.BSP60(M)1.BSP60(F)3/4	G 3/4" -14	G 1" -11	48	57	32	36
AD.BSP60(M)1-1/4.BSP60(F)3/4	G 3/4" -14	G 1.1/4" -11	47,5	56,5	32	46
AD.BSP60(M)1/2.BSP60(F)1	G 1" -11	G 1/2" -14	46,5	57,5	41	32
AD.BSP60(M)5/8.BSP60(F)1	G 1" -11	G 5/8" -14	48,5	59,5	41	32
AD.BSP60(M)3/4.BSP60(F)1	G 1" -11	G 3/4" -14	48,5	59,5	41	32
AD.BSP60(M)1.BSP60(F)1	G 1" -11	G 1" -11	51	62	41	36
AD.BSP60(M)1-1/4.BSP60(F)1	G 1" -11	G 1.1/4" -11	50,5	61,5	41	46
AD.BSP60(M)3/4.BSP60(F)1-1/4	G 1.1/4" -11	G 3/4" -14	54	64,5	50	41
AD.BSP60(M)1.BSP60(F)1-1/4	G 1.1/4" -11	G 1" -11	57	67,5	50	41
AD.BSP60(M)1-1/4.BSP60(F)1-1/4	G 1.1/4" -11	G 1.1/4" -11	55	65,5	50	46
AD.BSP60(M)1-1/2.BSP60(F)1-1/4	G 1.1/4" -11	G 1.1/2" -11	62	72,5	50	50
AD.BSP60(M)1-1/4.BSP60(F)1-1/2	G 1.1/2" -11	G 1.1/4" -11	54,5	67,5	55	46
AD.BSP60(M)1-1/2.BSP60(F)1-1/2	G 1.1/2" -11	G 1.1/2" -11	64	77	55	50
AD.BSP60(M)2.BSP60(F)1-1/2	G 1.1/2" -11	G 2" -11	66,5	79,5	55	65
AD.BSP60(M)1-1/2.BSP60(F)2	G 2" -11	G 1.1/2" -11	66	82,5	70	60
AD.BSP60(M)2.BSP60(F)2	G 2" -11	G 2" -11	69	85,5	70	65
