Прямой переходник BSP60 (штуцер) — BSP60 (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Соединительный штуцер Норма: ISO 8434-6 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба BSP, цилиндрическая Форма уплотнения 1: Внутренний конус 60° Форма уплотнения 2: Внутренний конус 60°

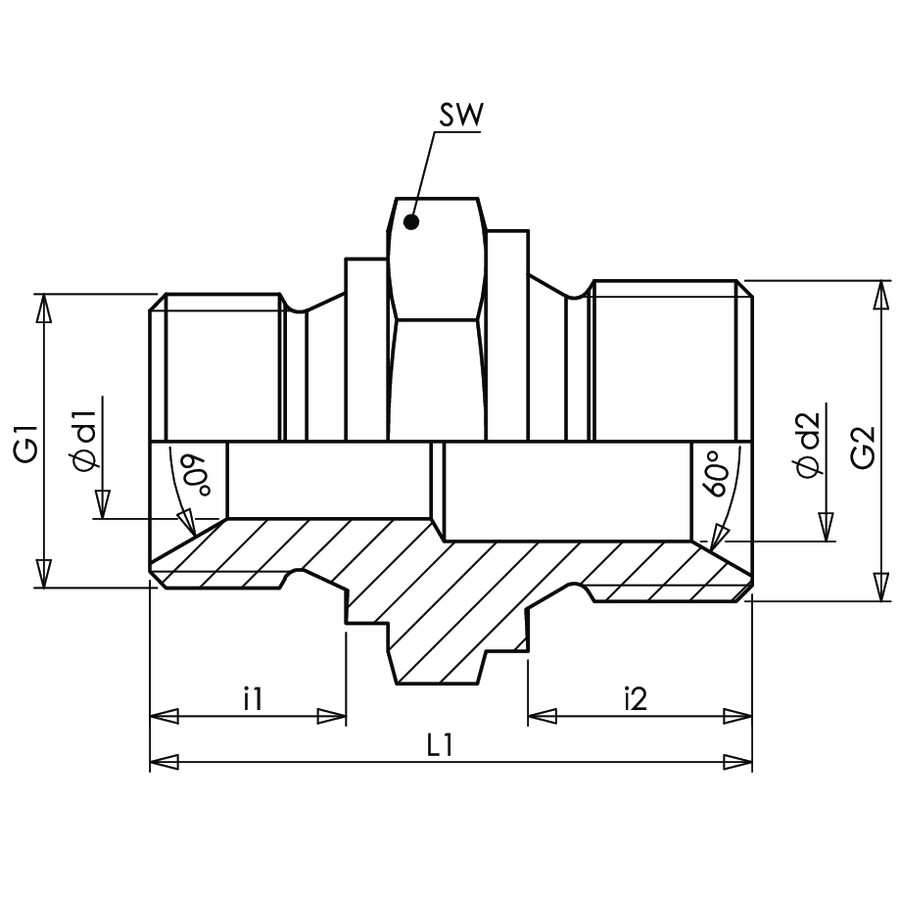

Code	G1	G2	L1	SW
AD.BSP60(M)1/8.BSP60(M)1/8	G 1/8" -28	G 1/8" -28	24	14
AD.BSP60(M)1/8.BSP60(M)1/4	G 1/8" -28	G 1/4" -19	28,5	19
AD.BSP60(M)1/8.BSP60(M)3/8	G 1/8" -28	G 3/8" -19	30	22
AD.BSP60(M)1/8.BSP60(M)1/2	G 1/8" -28	G 1/2" -14	33,5	27
AD.BSP60(M)1/4.BSP60(M)1/4	G 1/4" -19	G 1/4" -19	32	19
AD.BSP60(M)1/4.BSP60(M)3/8	G 1/4" -19	G 3/8" -19	33,5	22
AD.BSP60(M)1/4.BSP60(M)1/2	G 1/4" -19	G 1/2" -14	37	27
AD.BSP60(M)1/4.BSP60(M)5/8	G 1/4" -19	G 5/8" -14	39	30
AD.BSP60(M)1/4.BSP60(M)3/4	G 1/4" -19	G 3/4" -14	41	32
AD.BSP60(M)1/4.BSP60(M)1	G 1/4" -19	G 1" -11	45	41
AD.BSP60(M)1/4.BSP60(M)1-1/4	G 1/4" -19	G 1.1/4" -11	48	50
AD.BSP60(M)3/8.BSP60(M)3/8	G 3/8" -19	G 3/8" -19	35	22
AD.BSP60(M)3/8.BSP60(M)1/2	G 3/8" -19	G 1/2" -14	38,5	27
AD.BSP60(M)3/8.BSP60(M)5/8	G 3/8" -19	G 5/8" -14	40,5	32
AD.BSP60(M)3/8.BSP60(M)3/4	G 3/8" -19	G 3/4" -14	42,5	32
AD.BSP60(M)3/8.BSP60(M)1	G 3/8" -19	G 1" -11	46,5	41
AD.BSP60(M)3/8.BSP60(M)1-1/4	G 3/8" -19	G 1.1/4" -11	49,5	50
AD.BSP60(M)1/2.BSP60(M)1/2	G 1/2" -14	G 1/2" -14	41	27
AD.BSP60(M)1/2.BSP60(M)5/8	G 1/2" -14	G 5/8" -14	43	30
AD.BSP60(M)1/2.BSP60(M)3/4	G 1/2" -14	G 3/4" -14	45	32
AD.BSP60(M)1/2.BSP60(M)1	G 1/2" -14	G 1" -11	49	41
AD.BSP60(M)1/2.BSP60(M)1-1/4	G 1/2" -14	G 1.1/4" -11	52	50
AD.BSP60(M)1/2.BSP60(M)1-1/2	G 1/2" -14	G 1.1/2" -11	56	55
AD.BSP60(M)1/2.BSP60(M)2	G 1/2" -14	G 2" -11	62,5	70
AD.BSP60(M)5/8.BSP60(M)5/8	G 5/8" -14	G 5/8" -14	45	30
AD.BSP60(M)5/8.BSP60(M)3/4	G 5/8" -14	G 3/4" -14	47	32
AD.BSP60(M)5/8.BSP60(M)1	G 5/8" -14	G 1" -11	51	41
AD.BSP60(M)5/8.BSP60(M)1-1/4	G 5/8" -14	G 1.1/4" -11	54	50
AD.BSP60(M)3/4.BSP60(M)3/4	G 3/4" -14	G 3/4" -14	47	32
AD.BSP60(M)3/4.BSP60(M)1	G 3/4" -14	G 1" -11	51	41
AD.BSP60(M)3/4.BSP60(M)1-1/4	G 3/4" -14	G 1.1/4" -11	54	50
AD.BSP60(M)3/4.BSP60(M)1-1/2	G 3/4" -14	G 1.1/2" -11	58	55
AD.BSP60(M)3/4.BSP60(M)2	G 3/4" -14	G 2" -11	64,5	70
AD.BSP60(M)1.BSP60(M)1	G 1" -11	G 1" -11	54	41
AD.BSP60(M)1.BSP60(M)1-1/4	G 1" -11	G 1.1/4" -11	57	50
AD.BSP60(M)1.BSP60(M)1-1/2	G 1" -11	G 1.1/2" -11	61	55
AD.BSP60(M)1.BSP60(M)2	G 1" -11	G 2" -11	67,5	70
AD.BSP60(M)1-1/4.BSP60(M)1-1/4	G 1.1/4" -11	G 1.1/4" -11	58	50
AD.BSP60(M)1-1/4.BSP60(M)1-1/2	G 1.1/4" -11	G 1.1/2" -11	62	55
AD.BSP60(M)1-1/4.BSP60(M)2	G 1.1/4" -11	G 2" -11	68,5	70
AD.BSP60(M)1-1/2.BSP60(M)1-1/2	G 1.1/2" -11	G 1.1/2" -11	64	55
AD.BSP60(M)1-1/2.BSP60(M)2	G 1.1/2" -11	G 2" -11	70,5	70
AD.BSP60(M)2.BSP60(M)2	G 2" -11	G 2" -11	74	70
AD.BSP60(M)2-1/2.BSP60(M)3	G 2.1/2" -11	G 3" -11	88	100
AD.BSP60(M)3.BSP60(M)3	G 3" -11	G 3" -11	92	110
