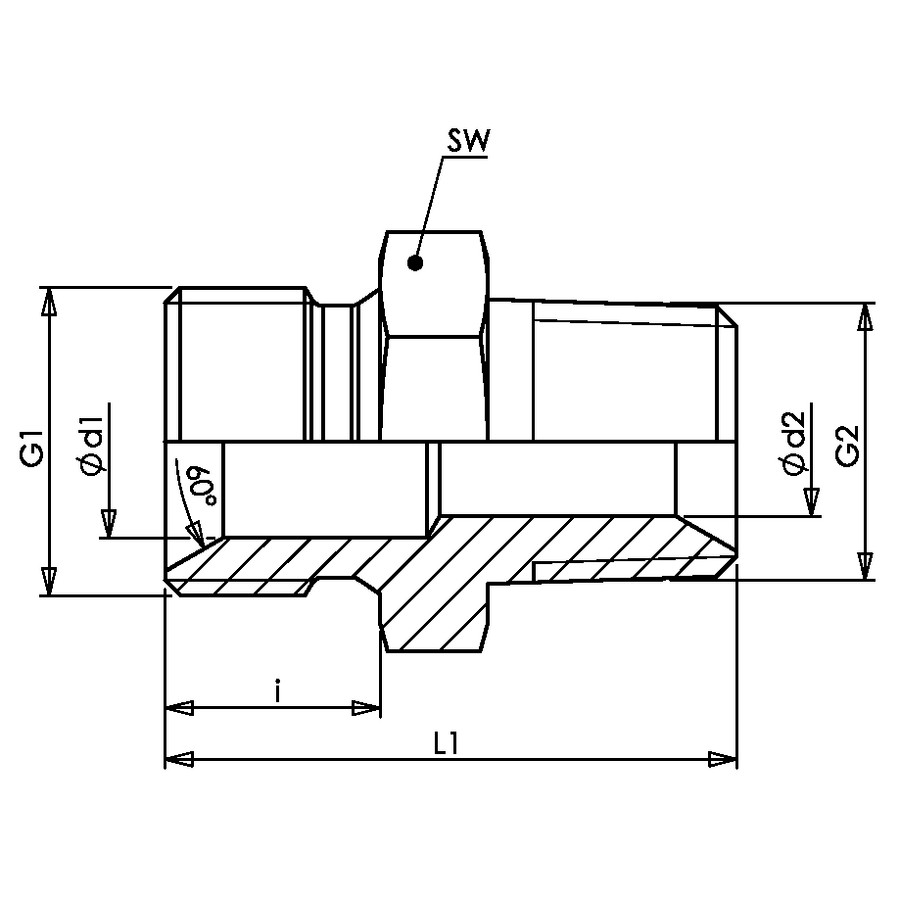

Прямой переходник BSP60 (штуцер) — NPT (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-6 Норма соединения 2: SAE J 514 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба NPT Форма уплотнения 1: Внутренний конус 60° Форма уплотнения 2: Резьбовое уплотнение
Code G1 G2 L1 SW i Ø d1 Ø d2
AD.BSP60(M)1/8.NPT(M)1/8 G 1/8" -28 1/8" -27 NPT 23.5 11 8 3.5 3.5
AD.BSP60(M)1/8.NPT(M)1/4 G 1/8" -28 1/4" -18 NPT 27.5 17 8 3.5 4.7
AD.BSP60(M)1/4.NPT(M)1/8 G 1/4" -19 1/8" -27 NPT 27.5 17 11 4.7 3.5
AD.BSP60(M)1/4.NPT(M)1/4 G 1/4" -19 1/4" -18 NPT 30.5 17 11 4.7 4.7
AD.BSP60(M)1/4.NPT(M)3/8 G 1/4" -19 3/8" -18 NPT 31 17 11 4.7 7.9
AD.BSP60(M)1/4.NPT(M)1/2 G 1/4" -19 1/2" -14 NPT 36.5 22 11 4.7 11.1
AD.BSP60(M)1/4.NPT(M)3/4 G 1/4" -19 3/4" -14 NPT 39 27 11 4.7 16.7
AD.BSP60(M)3/8.NPT(M)1/8 G 3/8" -19 1/8" -27 NPT 28.5 17 12 7.9 3.5
AD.BSP60(M)3/8.NPT(M)1/4 G 3/8" -19 1/4" -18 NPT 31.5 17 12 7.9 4.7
AD.BSP60(M)3/8.NPT(M)3/8 G 3/8" -19 3/8" -18 NPT 32 17 12 7.9 7.9
AD.BSP60(M)3/8.NPT(M)1/2 G 3/8" -19 1/2" -14 NPT 37.5 22 12 7.9 18.5
AD.BSP60(M)3/8.NPT(M)3/4 G 3/8" -19 3/4" -14 NPT 40 27 12 7.9 16.7
AD.BSP60(M)3/8.NPT(M)1 G 3/8" -19 1" -11.5 NPT 45 36 12 7.9 22.2
AD.BSP60(M)1/2.NPT(M)1/4 G 1/2" -14 1/4" -18 NPT 34.5 22 14 11.1 4.7
AD.BSP60(M)1/2.NPT(M)3/8 G 1/2" -14 3/8" -18 NPT 35 22 14 11.1 7.9
AD.BSP60(M)1/2.NPT(M)1/2 G 1/2" -14 1/2" -14 NPT 39.5 22 14 11.1 11.1
AD.BSP60(M)1/2.NPT(M)3/4 G 1/2" -14 3/4" -14 NPT 42 27 14 11.1 11.1
AD.BSP60(M)1/2.NPT(M)1 G 1/2" -14 1" -11.5 NPT 47 36 14 11.1 22.2
AD.BSP60(M)5/8.NPT(M)1/2 G 5/8" -14 1/2" -14 NPT 42.5 27 16 14.3 11.1
AD.BSP60(M)5/8.NPT(M)3/4 G 5/8" -14 3/4" -14 NPT 44 27 16 14.3 16.7
AD.BSP60(M)3/4.NPT(M)1/4 G 3/4" -14 1/4" -18 NPT 37.5 27 16 16.7 4.7
AD.BSP60(M)3/4.NPT(M)3/8 G 3/4" -14 3/8" -18 NPT 38 27 16 16.7 7.9
AD.BSP60(M)3/4.NPT(M)1/2 G 3/4" -14 1/2" -14 NPT 42.5 27 16 16.7 11.1
AD.BSP60(M)3/4.NPT(M)3/4 G 3/4" -14 3/4" -14 NPT 44 27 16 16.7 16.7
AD.BSP60(M)3/4.NPT(M)1 G 3/4" -14 1" -11.5 NPT 49 36 16 16.7 22.2
AD.BSP60(M)3/4.NPT(M)1-1/4 G 3/4" -14 1.1/4" -11.5 NPT 52 46 16 16.7 28.6
AD.BSP60(M)1.NPT(M)1/2 G 1" -11 1/2" -14 NPT 46.5 36 19 22.2 11.1
AD.BSP60(M)1.NPT(M)3/4 G 1" -11 3/4" -14 NPT 48 36 19 22.2 16.7
AD.BSP60(M)1.NPT(M)1 G 1" -11 1" -11.5 NPT 52 36 19 22.2 22.2
AD.BSP60(M)1.NPT(M)1-1/4 G 1" -11 1.1/4" -11.5 NPT 55 46 19 22.2 28.6
AD.BSP60(M)1.NPT(M)1-1/2 G 1" -11 1.1/2" -11.5 NPT 56 50 19 22.2 33.3
AD.BSP60(M)1.NPT(M)2 G 1" -11 2" -11.5 NPT 63 65 19 22.2 46
AD.BSP60(M)1-1/4.NPT(M)3/4 G 1.1/4" -11 3/4" -14 NPT 50 46 20 28.6 16.7
AD.BSP60(M)1-1/4.NPT(M)1 G 1.1/4" -11 1" -11.5 NPT 54 46 20 28.6 22.2
AD.BSP60(M)1-1/4.NPT(M)1-1/4 G 1.1/4" -11 1.1/4" -11.5 NPT 56 46 20 28.6 28.6
AD.BSP60(M)1-1/4.NPT(M)1-1/2 G 1.1/4" -11 1.1/2" -11.5 NPT 57 50 20 28.6 33.3
AD.BSP60(M)1-1/2.NPT(M)1 G 1.1/2" -11 1" -11.5 NPT 56 50 22 33.3 24
AD.BSP60(M)1-1/2.NPT(M)1-1/4 G 1.1/2" -11 1.1/4" -11.5 NPT 58 50 22 33.3 28.6
AD.BSP60(M)1-1/2.NPT(M)1-1/2 G 1.1/2" -11 1.1/2" -11.5 NPT 59 50 22 33.3 33.3
AD.BSP60(M)1-1/2.NPT(M)2 G 1.1/2" -11 2" -11.5 NPT 66 65 22 33.3 46
AD.BSP60(M)2.NPT(M)1-1/4 G 2" -11 1.1/4" -11.5 NPT 64 65 25 46 28.6
AD.BSP60(M)2.NPT(M)1-1/2 G 2" -11 1.1/2" -11.5 NPT 65 65 25 46 33.3
AD.BSP60(M)2.NPT(M)2 G 2" -11 2" -11.5 NPT 69 65 25 46 46
