Прямой переходник JIC (гайка) — BSP (штуцер с OK)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Норма соединения 1: ISO 1179-3 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Гаечная резьба UN/UNF Форма уплотнения 1: Кольцо круглого сечения и камерное кольцо Форма уплотнения 2: Внутренний конус 74°

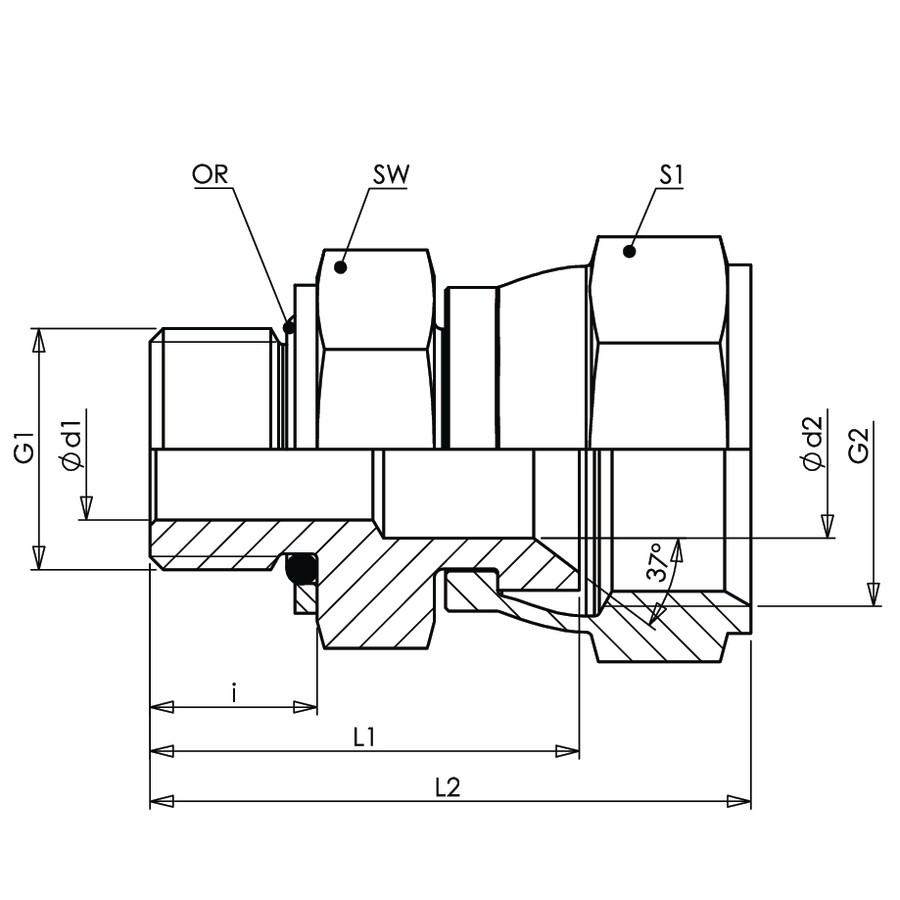

Code	OR	PN	G1	G2	L1	L2	S1	SW	i	Ø d1	Ø d2
AD.JIC(F)7/16.BSP(M)1/8.OK	7.97 x 1.88	PN 315	G 1/8" -28	UNF 7/16" -20	20.6	30.1	14	14	6.2	4	4
AD.JIC(F)1/2.BSP(M)1/8.OK	7.97 x 1.88	PN 315	G 1/8" -28	UNF 1/2" -20	21.8	31.3	17	14	6.2	4.4	4.4
AD.JIC(F)7/16.BSP(M)1/4.OK	10.77 x 2.62	PN 315	G 1/4" -19	UNF 7/16" -20	26	35.5	14	19	9.3	7.5	4
AD.JIC(F)1/2.BSP(M)1/4.OK	10.77 x 2.62	PN 315	G 1/4" -19	UNF 1/2" -20	27.2	36.7	17	19	9.3	7.5	4.4
AD.JIC(F)9/16.BSP(M)1/4.OK	10.77 x 2.62	PN 250	G 1/4" -19	UNF 9/16" -18	27.3	37.3	19	19	9.3	7.5	6
AD.JIC(F)3/4.BSP(M)1/4.OK	10.77 x 2.62	PN 250	G 1/4" -19	UNF 3/4" -16	28.9	40.4	24	19	9.3	7.5	9.9
AD.JIC(F)7/16.BSP(M)3/8.OK	13.94 x 2.62	PN 315	G 3/8" -19	UNF 7/16" -20	27.3	36.8	14	22	9.3	9.9	4
AD.JIC(F)1/2.BSP(M)3/8.OK	13.94 x 2.62	PN 315	G 3/8" -19	UNF 1/2" -20	28.5	38	17	22	9.3	9.9	4.4
AD.JIC(F)9/16.BSP(M)3/8.OK	13.94 x 2.62	PN 250	G 3/8" -19	UNF 9/16" -18	28.6	38.6	19	22	9.3	9.9	6
AD.JIC(F)3/4.BSP(M)3/8.OK	13.94 x 2.62	PN 250	G 3/8" -19	UNF 3/4" -16	30.2	41.7	24	22	9.3	9.9	9.9
AD.JIC(F)7/8.BSP(M)3/8.OK	13.94 x 2.62	PN 200	G 3/8" -19	UNF 7/8" -14	31.4	45.1	27	22	9.3	9.9	12.3
AD.JIC(F)9/16.BSP(M)1/2.OK	17.86 x 2.62	PN 250	G 1/2" -14	UNF 9/16" -18	34	44	19	30	12.6	12.3	6
AD.JIC(F)3/4.BSP(M)1/2.OK	17.86 x 2.62	PN 250	G 1/2" -14	UNF 3/4" -16	35.6	47.1	24	30	12.6	12.3	9.9
AD.JIC(F)7/8.BSP(M)1/2.OK	17.86 x 2.62	PN 200	G 1/2" -14	UNF 7/8" -14	36.8	50.5	27	30	12.6	12.3	12.3
AD.JIC(F)1-1/16.BSP(M)1/2.OK	17.86 x 2.62	PN 200	G 1/2" -14	UN 1.1/16" -12	37.3	52.2	32	30	12.6	12.3	15.5
AD.JIC(F)7/8.BSP(M)3/4.OK	23.47 x 2.62	PN 200	G 3/4" -14	UNF 7/8" -14	37.7	51.4	27	36	12.6	15.5	12.3
AD.JIC(F)1-1/16.BSP(M)3/4.OK	23.47 x 2.62	PN 200	G 3/4" -14	UN 1.1/16" -12	38.2	53.1	32	36	12.6	15.5	15.5
AD.JIC(F)1-5/16.BSP(M)3/4.OK	23.47 x 2.62	PN 160	G 3/4" -14	UN 1.5/16" -12	39.2	56	41	36	12.6	15.5	21.5
AD.JIC(F)1-1/16.BSP(M)1.OK	29.74 x 3.53	PN 200	G 1" -11	UN 1.1/16" -12	43	57.9	32	46	16	21.5	15.5
AD.JIC(F)1-5/16.BSP(M)1.OK	29.74 x 3.53	PN 160	G 1" -11	UN 1.5/16" -12	44	60.8	41	46	16	21.5	21.5
AD.JIC(F)1-5/8.BSP(M)1.OK	29.74 x 3.53	PN 125	G 1" -11	UN 1.5/8" -12	45.9	62.2	50	46	16	21.5	27.5
AD.JIC(F)1-5/16.BSP(M)1-1/4.OK	37.69 x 3.53	PN 160	G 1.1/4" -11	UN 1.5/16" -12	46.3	63.1	41	50	16.1	27.5	21.5
AD.JIC(F)1-5/8.BSP(M)1-1/4.OK	37.69 x 3.53	PN 125	G 1.1/4" -11	UN 1.5/8" -12	48.2	64.5	50	50	16.1	27.5	27.5
AD.JIC(F)1-7/8.BSP(M)1-1/4.OK	37.69 x 3.53	PN 100	G 1.1/4" -11	UN 1.7/8" -12	50	69.4	60	50	16.1	27.5	33.5
AD.JIC(F)1-7/8.BSP(M)1-1/2.OK	44.04 x 3.53	PN 100	G 1.1/2" -11	UN 1.7/8" -12	50.8	70.2	60	55	16.1	33	33
