Прямой переходник JIC (штуцер) — BSP (штуцер с ED)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Норма соединения 1: ISO 1179-2 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба UN/UNF Форма уплотнения 1: Внутренний конус 60°; форма E Форма уплотнения 2: Наружный конус 74°

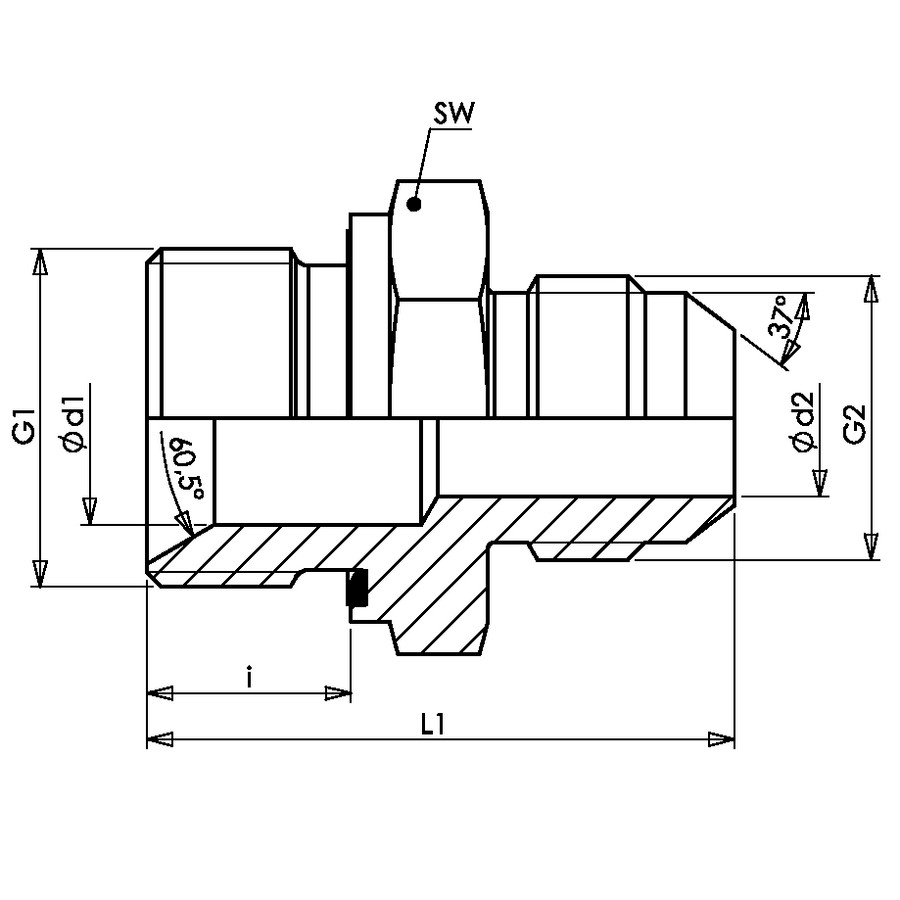

Code	G1	G2	i	L1	SW	Ø d1	Ø d2
AD.JIC(M)7/16.BSP(M)1/8.ED	G 1/8" -28	7/16" -20 UNF	8	30	14	3.5	3.5
AD.JIC(M)1/2.BSP(M)1/8.ED	G 1/8" -28	1/2" -20 UNF	8	30	14	3.5	6
AD.JIC(M)9/16.BSP(M)1/8.ED	G 1/8" -28	9/16" -18 UNF	8	30	17	3.5	7.5
AD.JIC(M)7/16.BSP(M)1/4.ED	G 1/4" -19	7/16" -20 UNF	12	34	19	4.4	4.4
AD.JIC(M)1/2.BSP(M)1/4.ED	G 1/4" -19	1/2" -20 UNF	12	34	19	4.7	4.7
AD.JIC(M)9/16.BSP(M)1/4.ED	G 1/4" -19	9/16" -18 UNF	12	35	19	4.7	7.5
AD.JIC(M)3/4.BSP(M)1/4.ED	G 1/4" -19	3/4" -16 UNF	12	39	22	4.7	9.9
AD.JIC(M)7/16.BSP(M)3/8.ED	G 3/8" -19	7/16" -20 UNF	12	34.5	22	7.9	4.4
AD.JIC(M)9/16.BSP(M)3/8.ED	G 3/8" -19	9/16" -18 UNF	12	34.5	22	7.5	7.5
AD.JIC(M)1/2.BSP(M)3/8.ED	G 3/8" -19	1/2" -20 UNF	12	34.5	22	7.9	6
AD.JIC(M)3/4.BSP(M)3/8.ED	G 3/8" -19	3/4" -16 UNF	12	41	22	7.9	9.9
AD.JIC(M)7/8.BSP(M)3/8.ED	G 3/8" -19	7/8" -14 UNF	12	42.5	24	7.9	12.3
AD.JIC(M)1-1/16.BSP(M)3/8.ED	G 3/8" -19	1.1/16" -12 UN	12	44.5	27	7.9	15.5
AD.JIC(M)7/16.BSP(M)1/2.ED	G 1/2" -14	7/16" -20 UNF	14	37.5	27	11.1	4.4
AD.JIC(M)9/16.BSP(M)1/2.ED	G 1/2" -14	9/16" -18 UNF	14	40	27	11.1	7.5
AD.JIC(M)3/4.BSP(M)1/2.ED	G 1/2" -14	3/4" -16 UNF	14	40.5	27	9.9	9.9
AD.JIC(M)7/8.BSP(M)1/2.ED	G 1/2" -14	7/8" -14 UNF	14	43	27	11.1	11.1
AD.JIC(M)1-1/16.BSP(M)1/2.ED	G 1/2" -14	1.1/16" -12 UN	14	50	27	11.1	15.5
AD.JIC(M)3/4.BSP(M)3/4.ED	G 3/4" -14	3/4" -16 UNF	16	46	32	16.7	9.9
AD.JIC(M)7/8.BSP(M)3/4.ED	G 3/4" -14	7/8" -14 UNF	16	46	32	16.7	12.3
AD.JIC(M)1-1/16.BSP(M)3/4.ED	G 3/4" -14	1.1/16" -12 UN	16	51	32	15.5	15.5
AD.JIC(M)1-5/16.BSP(M)3/4.ED	G 3/4" -14	1.5/16" -12 UN	16	53	36	16.7	21.5
AD.JIC(M)1-1/16.BSP(M)1.ED	G 1" -11	1.1/16" -12 UN	18	53	41	22.2	15.5
AD.JIC(M)1-5/16.BSP(M)1.ED	G 1" -11	1.5/16" -12 UN	18	53.5	41	21.5	21.5
AD.JIC(M)1-5/8.BSP(M)1.ED	G 1" -11	1.5/8" -12 UN	18	55	46	22.2	27.5
AD.JIC(M)1-7/8.BSP(M)1.ED	G 1" -11	1.7/8" -12 UN	18	60	50	22.2	33.5
AD.JIC(M)1-5/16.BSP(M)1-1/4.ED	G 1.1/4" -11	1.5/16" -12 UN	20	57.5	50	28.6	21.5
AD.JIC(M)1-5/8.BSP(M)1-1/4.ED	G 1.1/4" -11	1.5/8" -12 UN	20	59	50	27.5	27.5
AD.JIC(M)1-7/8.BSP(M)1-1/4.ED	G 1.1/4" -11	1.7/8" -12 UN	20	62	50	28.6	33.5
AD.JIC(M)1-5/8.BSP(M)1-1/2.ED	G 1.1/2" -11	1.5/8" -12 UN	22	61	55	33.3	27.5
AD.JIC(M)1-7/8.BSP(M)1-1/2.ED	G 1.1/2" -11	1.7/8" -12 UN	22	64	55	33.3	33.3
