Прямой переходник JIC (штуцер) — BSP (штуцер с OR)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба UN/UNF Форма уплотнения 1: Кольцо круглого сечения Форма уплотнения 2: Наружный конус 74°

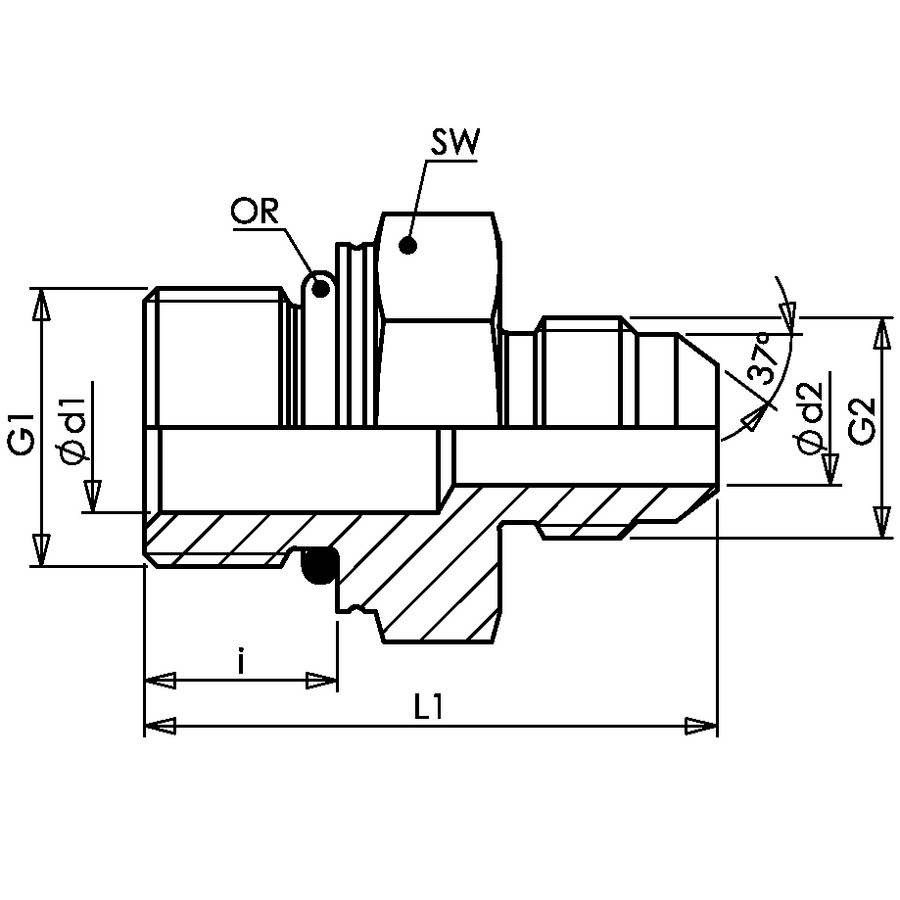

Code	OR	G1	G2	i	L1	SW	Ø d1	Ø d2
AD.JIC(M)7/16.BSP(M)1/8.OR	7.79 x 1.88	G 1/8" -28	7/16" -20 UNF	7.6	29.0	14	4.4	4.4
AD.JIC(M)1/2.BSP(M)1/8.OR	7.79 x 1.88	G 1/8" -28	1/2" -20 UNF	7.6	29.0	14	4.4	6.0
AD.JIC(M)7/16.BSP(M)1/4.OR	10.77 x 2.62	G 1/4" -19	7/16" -20 UNF	11.2	32.0	19	7.5	4.4
AD.JIC(M)1/2.BSP(M)1/4.OR	10.77 x 2.62	G 1/4" -19	1/2" -20 UNF	11.2	32.0	19	7.5	6.0
AD.JIC(M)9/16.BSP(M)1/4.OR	10.77 x 2.62	G 1/4" -19	9/16" -18 UNF	11.2	32.0	19	7.5	7.5
AD.JIC(M)3/4.BSP(M)1/4.OR	10.77 x 2.62	G 1/4" -19	3/4" -16 UNF	11.2	36.0	22	7.5	9.9
AD.JIC(M)7/16.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	7/16" -20 UNF	11.2	33.3	22	9.9	4.4
AD.JIC(M)1/2.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	1/2" -20 UNF	11.2	33.3	22	9.9	6.0
AD.JIC(M)9/16.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	9/16" -18 UNF	11.2	33.4	22	9.9	7.5
AD.JIC(M)3/4.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	3/4" -16 UNF	11.2	36.0	22	9.9	9.9
AD.JIC(M)7/8.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	7/8" -14 UNF	11.2	38.6	24	9.9	12.3
AD.JIC(M)7/16.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	7/16" -20 UNF	14.5	38.7	30	12.3	4.4
AD.JIC(M)9/16.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	9/16" -18 UNF	14.5	38.8	30	12.3	7.5
AD.JIC(M)3/4.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	3/4" -16 UNF	14.5	41.4	30	12.3	9.9
AD.JIC(M)7/8.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	7/8" -14 UNF	14.5	44.0	30	12.3	12.3
AD.JIC(M)1-1/16.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	1.1/16" -12 UN	14.5	46.6	30	12.3	15.5
AD.JIC(M)3/4.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	3/4" -16 UNF	14.5	42.3	36	15.5	9.9
AD.JIC(M)1-1/16.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	1.1/16" -12 UN	14.5	47.5	36	15.5	15.5
AD.JIC(M)1-3/16.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	1.3/16" -12 UN	14.5	48.3	36	15.5	18.0
AD.JIC(M)1-5/16.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	1.5/16" -12 UN	14.5	48.7	36	15.5	21.5
AD.JIC(M)1-1/16.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.1/16" -12 UN	18.6	52.3	46	21.5	15.5
AD.JIC(M)1-5/16.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.5/16" -12 UN	18.6	53.5	46	21.5	21.5
AD.JIC(M)1-5/8.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.5/8" -12 UN	18.6	54.7	46	21.5	27.5
AD.JIC(M)1-5/16.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.5/16" -12 UN	18.6	55.8	50	27.5	21.5
AD.JIC(M)1-5/8.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.5/8" -12 UN	18.6	57.0	50	27.5	27.5
AD.JIC(M)1-7/8.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.7/8" -12 UN	18.6	60.2	50	27.5	33.5
AD.JIC(M)1-7/8.BSP(M)1-1/2.OR	44.04 x 3.53	G 1.1/2" -11	1.7/8" -12 UN	18.6	61.0	55	33.0	33.0
