Прямой переходник JIC (штуцер длинный) — BSP (штуцер с OR)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер, длинный Норма: ISO 8434-2 Соединение 1: Наружная резьба BSP, цилиндрическая Соединение 2: Наружная резьба UN/UNF Форма уплотнения 1: Кольцо круглого сечения Форма уплотнения 2: Наружный конус 74°

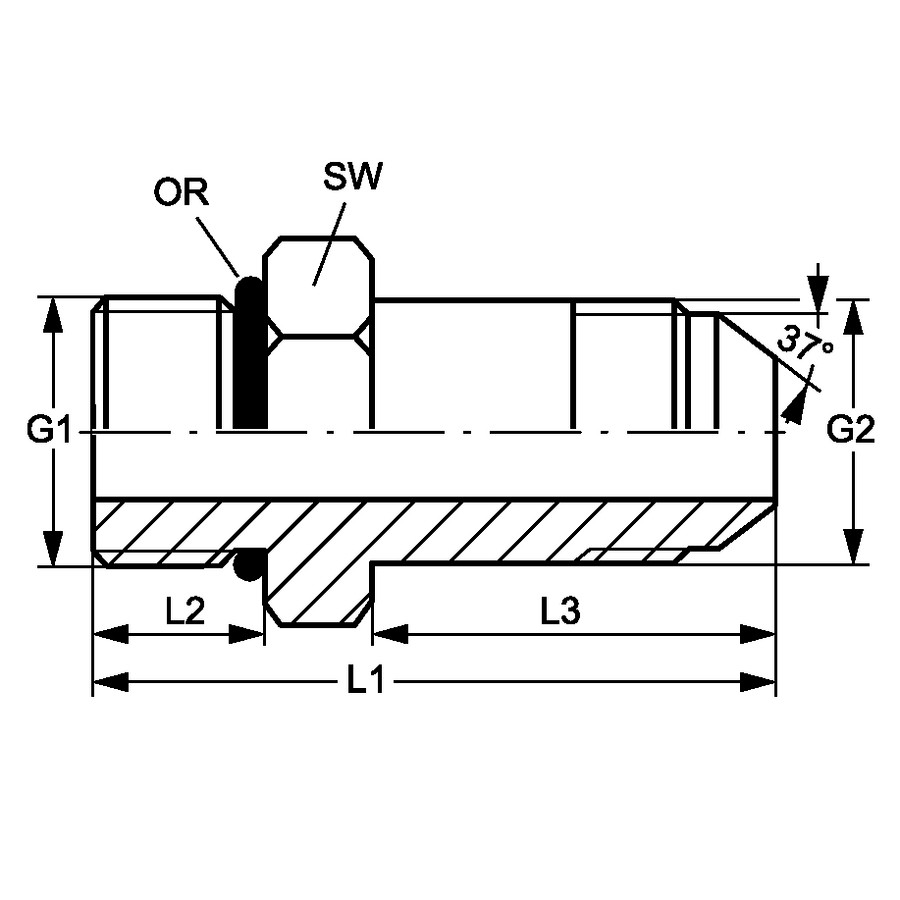

Code	OR	G1	G2	L1	L2	L3	SW
AD.JIC(ML)7/16.BSP(M)1/8.OR	7.65 x 1.78	G 1/8" -28	7/16" -20 UNF	50.0	8	35	16
AD.JIC(ML)7/16.BSP(M)1/4.OR	10.78 x 2.62	G 1/4" -19	7/16" -20 UNF	55.5	12	35	20
AD.JIC(ML)1/2.BSP(M)1/4.OR	10.78 x 2.62	G 1/4" -19	1/2" -20 UNF	57.5	12	37	20
AD.JIC(ML)9/16.BSP(M)1/4.OR	10.78 x 2.62	G 1/4" -19	9/16" -18 UNF	59.5	12	39	20
AD.JIC(ML)3/4.BSP(M)1/4.OR	10.78 x 2.62	G 1/4" -19	3/4" -16 UNF	68.5	12	48	20
AD.JIC(ML)1/2.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	1/2" -20 UNF	57.5	12	37	24
AD.JIC(ML)9/16.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	9/16" -18 UNF	59.5	12	39	24
AD.JIC(ML)3/4.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	3/4" -16 UNF	68.5	12	48	24
AD.JIC(ML)7/8.BSP(M)3/8.OR	13.94 x 2.62	G 3/8" -19	7/8" -14 UNF	74.0	12	53	24
AD.JIC(ML)9/16.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	9/16" -18 UNF	63.0	14	39	28
AD.JIC(ML)3/4.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	3/4" -16 UNF	72.0	14	48	28
AD.JIC(ML)7/8.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	7/8" -14 UNF	77.0	14	53	28
AD.JIC(ML)1-1/16.BSP(M)1/2.OR	17.86 x 2.62	G 1/2" -14	1.1/16" -12 UN	88.0	14	63	28
AD.JIC(ML)7/8.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	7/8" -14 UNF	81.0	16	53	35
AD.JIC(ML)1-1/16.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	1.1/16" -12 UN	91.0	16	63	35
AD.JIC(ML)1-5/16.BSP(M)3/4.OR	23.47 x 2.62	G 3/4" -14	1.5/16" -12 UN	100.0	16	72	35
AD.JIC(ML)1-1/16.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.1/16" -12 UN	93.5	18	63	43
AD.JIC(ML)1-5/16.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.5/16" -12 UN	102.0	18	72	43
AD.JIC(ML)1-5/8.BSP(M)1.OR	29.74 x 3.53	G 1" -11	1.5/8" -12 UN	119.0	18	88	43
AD.JIC(ML)1-5/16.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.5/16" -12 UN	106.0	20	72	52
AD.JIC(ML)1-5/8.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.5/8" -12 UN	119.0	18	88	52
AD.JIC(ML)1-7/8.BSP(M)1-1/4.OR	37.69 x 3.53	G 1.1/4" -11	1.7/8" -12 UN	132.0	20	98	52
AD.JIC(ML)1-7/8.BSP(M)1-1/2.OR	44.04 x 3.53	G 1.1/2" -11	1.7/8" -12 UN	136.0	22	98	58
