Прямой переходник JIC (штуцер) — NPT (штуцер)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Норма соединения 2: SAE J 514 Соединение 1: Наружная резьба NPT Соединение 2: Наружная резьба UN/UNF Форма уплотнения 1: Резьбовое уплотнение Форма уплотнения 2: Наружный конус 74°

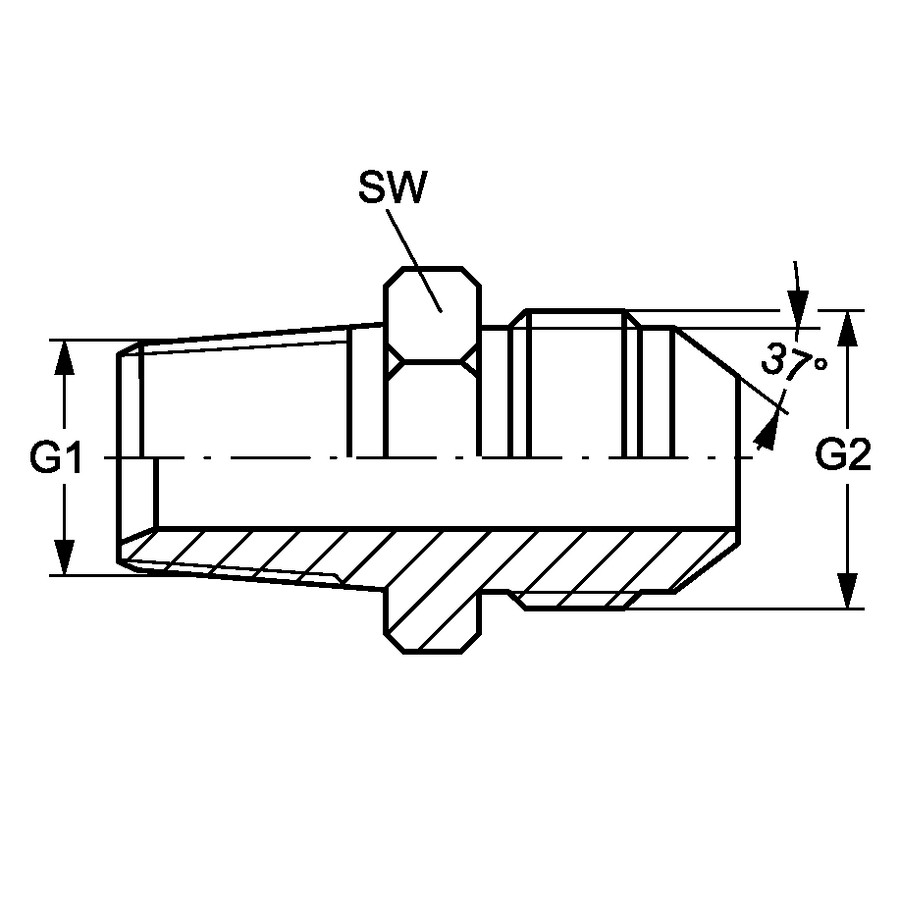

Code	G1	G2	SW
AD.JIC(M)3/8.NPT(M)1/8	1/8" -27 NPT	3/8" -24 UNF	12
AD.JIC(M)7/16.NPT(M)1/8	1/8" -27 NPT	7/16" -20 UNF	12
AD.JIC(M)1/2.NPT(M)1/8	1/8" -27 NPT	1/2" -20 UNF	14
AD.JIC(M)9/16.NPT(M)1/8	1/8" -27 NPT	9/16" -18 UNF	17
AD.JIC(M)3/4.NPT(M)1/8	1/8" -27 NPT	3/4" -16 UNF	19
AD.JIC(M)7/16.NPT(M)1/4	1/4" -18 NPT	7/16" -20 UNF	14
AD.JIC(M)1/2.NPT(M)1/4	1/4" -18 NPT	1/2" -20 UNF	14
AD.JIC(M)9/16.NPT(M)1/4	1/4" -18 NPT	9/16" -18 UNF	17
AD.JIC(M)3/4.NPT(M)1/4	1/4" -18 NPT	3/4" -16 UNF	19
AD.JIC(M)7/16.NPT(M)3/8	3/8" -18 NPT	7/16" -20 UNF	19
AD.JIC(M)1/2.NPT(M)3/8	3/8" -18 NPT	1/2" -20 UNF	19
AD.JIC(M)9/16.NPT(M)3/8	3/8" -18 NPT	9/16" -18 UNF	19
AD.JIC(M)3/4.NPT(M)3/8	3/8" -18 NPT	3/4" -16 UNF	19
AD.JIC(M)7/8.NPT(M)3/8	3/8" -18 NPT	7/8" -14 UNF	24
AD.JIC(M)1-1/16.NPT(M)3/8	3/8" -18 NPT	1.1/16" -12 UN	27
AD.JIC(M)7/16.NPT(M)1/2	1/2" -14 NPT	7/16" -20 UNF	24
AD.JIC(M)1/2.NPT(M)1/2	1/2" -14 NPT	1/2" -20 UNF	24
AD.JIC(M)9/16.NPT(M)1/2	1/2" -14 NPT	9/16" -18 UNF	24
AD.JIC(M)3/4.NPT(M)1/2	1/2" -14 NPT	3/4" -16 UNF	24
AD.JIC(M)7/8.NPT(M)1/2	1/2" -14 NPT	7/8" -14 UNF	24
AD.JIC(M)1-1/16.NPT(M)1/2	1/2" -14 NPT	1.1/16" -12 UN	27
AD.JIC(M)1-5/16.NPT(M)1/2	1/2" -14 NPT	1.5/16" -12 UN	36
AD.JIC(M)7/16.NPT(M)3/4	3/4" -14 NPT	7/16" -20 UNF	27
AD.JIC(M)9/16.NPT(M)3/4	3/4" -14 NPT	9/16" -18 UNF	27
AD.JIC(M)3/4.NPT(M)3/4	3/4" -14 NPT	3/4" -16 UNF	27
AD.JIC(M)7/8.NPT(M)3/4	3/4" -14 NPT	7/8" -14 UNF	27
AD.JIC(M)1-1/16.NPT(M)3/4	3/4" -14 NPT	1.1/16" -12 UN	27
AD.JIC(M)1-3/16.NPT(M)3/4	3/4" -14 NPT	1.3/16" -12 UN	32
AD.JIC(M)1-5/16.NPT(M)3/4	3/4" -14 NPT	1.5/16" -12 UN	36
AD.JIC(M)1-1/16.NPT(M)1	1" -11.5 NPT	1.1/16" -12 UN	36
AD.JIC(M)1-5/16.NPT(M)1	1" -11.5 NPT	1.5/16" -12 UN	36
AD.JIC(M)1-5/8.NPT(M)1	1" -11.5 NPT	1.5/8" -12 UN	46
AD.JIC(M)1-7/8.NPT(M)1	1" -11.5 NPT	1.7/8" -12 UN	50
AD.JIC(M)1-1/16.NPT(M)1-1/4	1.1/4" -11.5 NPT	1.1/16" -12 UN	46
AD.JIC(M)1-5/16.NPT(M)1-1/4	1.1/4" -11.5 NPT	1.5/16" -12 UN	46
AD.JIC(M)1-5/8.NPT(M)1-1/4	1.1/4" -11.5 NPT	1.5/8" -12 UN	46
AD.JIC(M)1-7/8.NPT(M)1-1/4	1.1/4" -11.5 NPT	1.7/8" -12 UN	50
AD.JIC(M)2-1/2.NPT(M)1-1/4	1.1/4" -11.5 NPT	2.1/2" -12 UN	65
AD.JIC(M)1-1/16.NPT(M)1-1/2	1.1/2" -11.5 NPT	1.1/16" -12 UN	50
AD.JIC(M)1-5/16.NPT(M)1-1/2	1.1/2" -11.5 NPT	1.5/16" -12 UN	50
AD.JIC(M)1-5/8.NPT(M)1-1/2	1.1/2" -11.5 NPT	1.5/8" -12 UN	50
AD.JIC(M)1-7/8.NPT(M)1-1/2	1.1/2" -11.5 NPT	1.7/8" -12 UN	50
AD.JIC(M)2-1/2.NPT(M)1-1/2	1.1/2" -11.5 NPT	2.1/2" -12 UN	65
AD.JIC(M)1-7/8.NPT(M)2	2" -11.5 NPT	1.7/8" -12 UN	65
AD.JIC(M)2-1/2.NPT(M)2	2" -11.5 NPT	2.1/2" -12 UN	65
