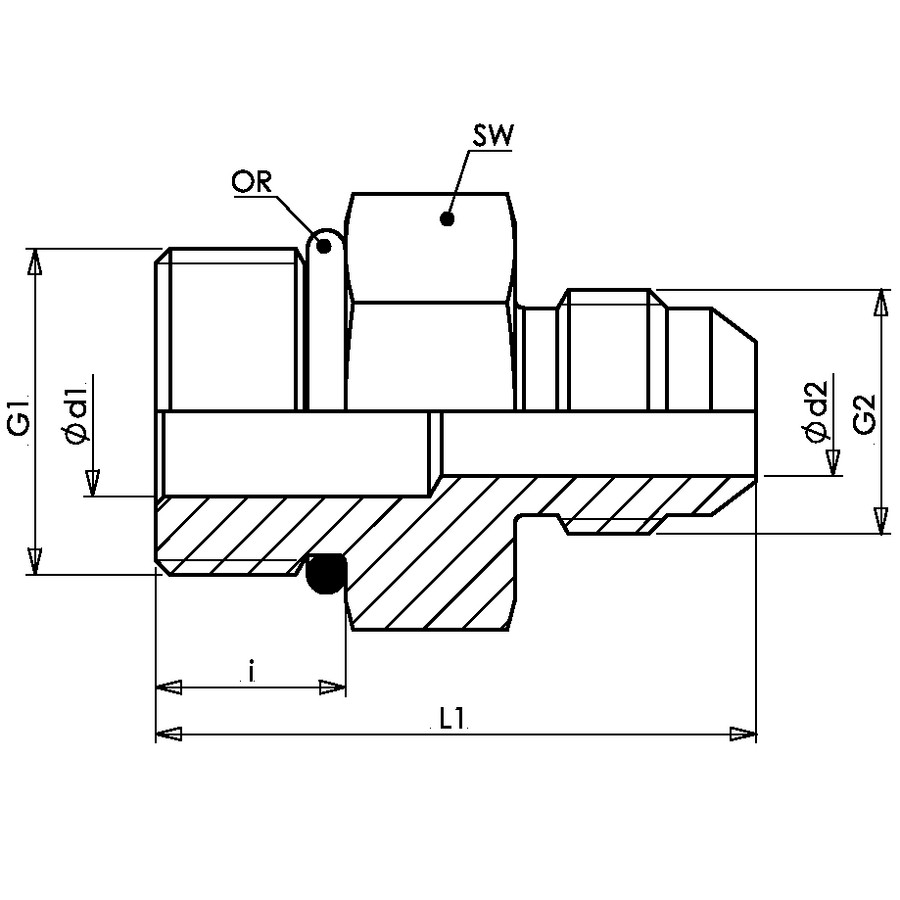

Прямой переходник JIC (штуцер) — UNF (штуцер с OR)

Защита поверхности: Гальваническое покрытие Конструкция: Прямые Материал: Сталь Модель: Ввертный штуцер Норма: ISO 8434-2 Норма соединения 1: ISO 11926-3 Соединение 1: Наружная резьба UN/UNF Соединение 2: Наружная резьба UN/UNF Форма уплотнения 1: Уплотнение кольцом круглого сечения Форма уплотнения 2: Наружный конус 74°
Code OR G1 G2 i L1 SW Ø d1 Ø d2
AD.JIC(M)7/16.UNF(M)3/8.OR 7.65 x 1.63 3/8" -24 UNF 7/16" -20 UNF 7.5 29.7 12 3 3
AD.JIC(M)7/16.UNF(M)7/16.OR 9.17 x 1.83 7/16" -20 UNF 7/16" -20 UNF 9.1 31 14 4.4 4.4
AD.JIC(M)1/2.UNF(M)7/16.OR 9.17 x 1.83 7/16" -20 UNF 1/2" -20 UNF 9.1 31.2 14 4 6
AD.JIC(M)9/16.UNF(M)7/16.OR 9.17 x 1.83 7/16" -20 UNF 9/16" -18 UNF 9.1 32.2 17 4 7.5
AD.JIC(M)7/16.UNF(M)1/2.OR 10.52 x 1.83 1/2" -20 UNF 7/16" -20 UNF 9.1 31.2 17 4.4 4.4
AD.JIC(M)1/2.UNF(M)1/2.OR 10.52 x 1.83 1/2" -20 UNF 1/2" -20 UNF 9.1 31 17 6 6
AD.JIC(M)9/16.UNF(M)1/2.OR 10.52 x 1.83 1/2" -20 UNF 9/16" -18 UNF 9.1 32.2 17 6 6
AD.JIC(M)7/16.UNF(M)9/16.OR 11.90 x 1.98 9/16" -18 UNF 7/16" -20 UNF 10 32.7 17 7.5 4.4
AD.JIC(M)1/2.UNF(M)9/16.OR 11.90 x 1.98 9/16" -18 UNF 1/2" -20 UNF 10 32.7 17 6 6
AD.JIC(M)9/16.UNF(M)9/16.OR 11.90 x 1.98 9/16" -18 UNF 9/16" -18 UNF 10 33 17 7.5 7.5
AD.JIC(M)3/4.UNF(M)9/16.OR 11.90 x 1.98 9/16" -18 UNF 3/4" -16 UNF 10 36.6 19 7.5 9.9
AD.JIC(M)7/16.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 7/16" -20 UNF 11.1 34.8 22 9.9 4.4
AD.JIC(M)1/2.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 1/2" -20 UNF 11.1 34.8 22 9.9 6
AD.JIC(M)9/16.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 9/16" -18 UNF 11.1 35.1 22 9.9 7.5
AD.JIC(M)3/4.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 3/4" -16 UNF 11.1 37.5 22 9.9 9.9
AD.JIC(M)7/8.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 7/8" -14 UNF 11.1 41.7 24 9.9 12.3
AD.JIC(M)1-1/16.UNF(M)3/4.OR 16.36 x 2.20 3/4" -16 UNF 1.1/16" -12 UN 11.1 49.2 27 9.9 15.5
AD.JIC(M)9/16.UNF(M)7/8.OR 19.18 x 2.46 7/8" -14 UNF 9/16" -18 UNF 12.7 38.1 27 12.3 7.5
AD.JIC(M)3/4.UNF(M)7/8.OR 19.18 x 2.46 7/8" -14 UNF 3/4" -16 UNF 12.7 40.7 27 9.9 9.9
AD.JIC(M)7/8.UNF(M)7/8.OR 19.18 x 2.46 7/8" -14 UNF 7/8" -14 UNF 12.7 43 27 12.3 12.3
AD.JIC(M)1-1/16.UNF(M)7/8.OR 19.18 x 2.46 7/8" -14 UNF 1.1/16" -12 UN 12.7 47.7 27 12.3 15.5
AD.JIC(M)1-5/16.UNF(M)7/8.OR 19.18 x 2.46 7/8" -14 UNF 1.5/16" -12 UN 12.7 52.6 36 12.3 21.5
AD.JIC(M)9/16.UNF(M)1-1/16.OR 23.47 x 2.95 1.1/16" -12 UN 9/16" -18 UNF 15.1 42.1 32 15.5 7.5
AD.JIC(M)3/4.UNF(M)1-1/16.OR 23.47 x 2.95 1.1/16" -12 UN 3/4" -16 UNF 15.1 44.7 32 15.5 9.9
AD.JIC(M)7/8.UNF(M)1-1/16.OR 23.47 x 2.95 1.1/16" -12 UN 7/8" -14 UNF 15.1 47.2 32 12.3 12.3
AD.JIC(M)1-1/16.UNF(M)1-1/16.OR 23.47 x 2.95 1.1/16" -12 UN 1.1/16" -12 UN 15.1 50 32 15.5 15.5
AD.JIC(M)1-5/16.UNF(M)1-1/16.OR 23.47 x 2.95 1.1/16" -12 UN 1.5/16" -12 UN 15.1 51.8 36 15.5 21.5
AD.JIC(M)1-1/16.UNF(M)1-3/16.OR 26.62 x 2.95 1.3/16" -12 UN 1.1/16" -12 UN 15.1 49.7 36 15.5 15.5
AD.JIC(M)1-3/16.UNF(M)1-3/16.OR 26.62 x 2.95 1.3/16" -12 UN 1.3/16" -12 UN 15.1 50.5 36 18 18
AD.JIC(M)7/8.UNF(M)1-5/16.OR 29.74 x 2.95 1.5/16" -12 UN 7/8" -14 UNF 15.1 48 41 21.5 12.3
AD.JIC(M)1-1/16.UNF(M)1-5/16.OR 29.74 x 2.95 1.5/16" -12 UN 1.1/16" -12 UN 15.1 50.5 41 21.5 15.5
AD.JIC(M)1-5/16.UNF(M)1-5/16.OR 29.74 x 2.95 1.5/16" -12 UN 1.5/16" -12 UN 15.1 52 41 21.5 21.5
AD.JIC(M)1-5/8.UNF(M)1-5/16.OR 29.74 x 2.95 1.5/16" -12 UN 1.5/8" -12 UN 15.1 59.2 46 21.5 27.5
AD.JIC(M)1-7/8.UNF(M)1-5/16.OR 29.74 x 2.95 1.5/16" -12 UN 1.7/8" -12 UN 15.1 62.7 50 21.5 33.5
AD.JIC(M)1-5/16.UNF(M)1-5/8.OR 37.47 x 3.00 1.5/8" -12 UN 1.5/16" -12 UN 15.1 53.8 50 27.5 21.5
AD.JIC(M)1-5/8.UNF(M)1-5/8.OR 37.47 x 3.00 1.5/8" -12 UN 1.5/8" -12 UN 15.1 55 50 27.5 27.5
AD.JIC(M)1-7/8.UNF(M)1-5/8.OR 37.47 x 3.00 1.5/8" -12 UN 1.7/8" -12 UN 15.1 58.2 50 27.5 27.5
AD.JIC(M)1-5/8.UNF(M)1-7/8.OR 43.69 x 3.00 1.7/8" -12 UN 1.5/8" -12 UN 15.1 56.9 55 33 27.5
AD.JIC(M)1-7/8.UNF(M)1-7/8.OR 43.69 x 3.00 1.7/8" -12 UN 1.7/8" -12 UN 15.1 60 55 33.5 33.5
AD.JIC(M)2-1/2.UNF(M)2-1/2.OR 59.36 x 3.00 2.1/2" -12 UN 2.1/2" -12 UN 15.1 70.5 70 45 45
