Угловой переходник 90° NPT (штуцер) — NPT (гайка)

Защита поверхности: Гальваническое покрытие Конструкция: Угол 90° Материал: Сталь Модель: Ввертный штуцер Норма: SAE J 514 Соединение 1: Гаечная резьба NPSM Соединение 2: Наружная резьба NPT Форма уплотнения 1: Наружный конус 60° Форма уплотнения 2: Резьбовое уплотнение

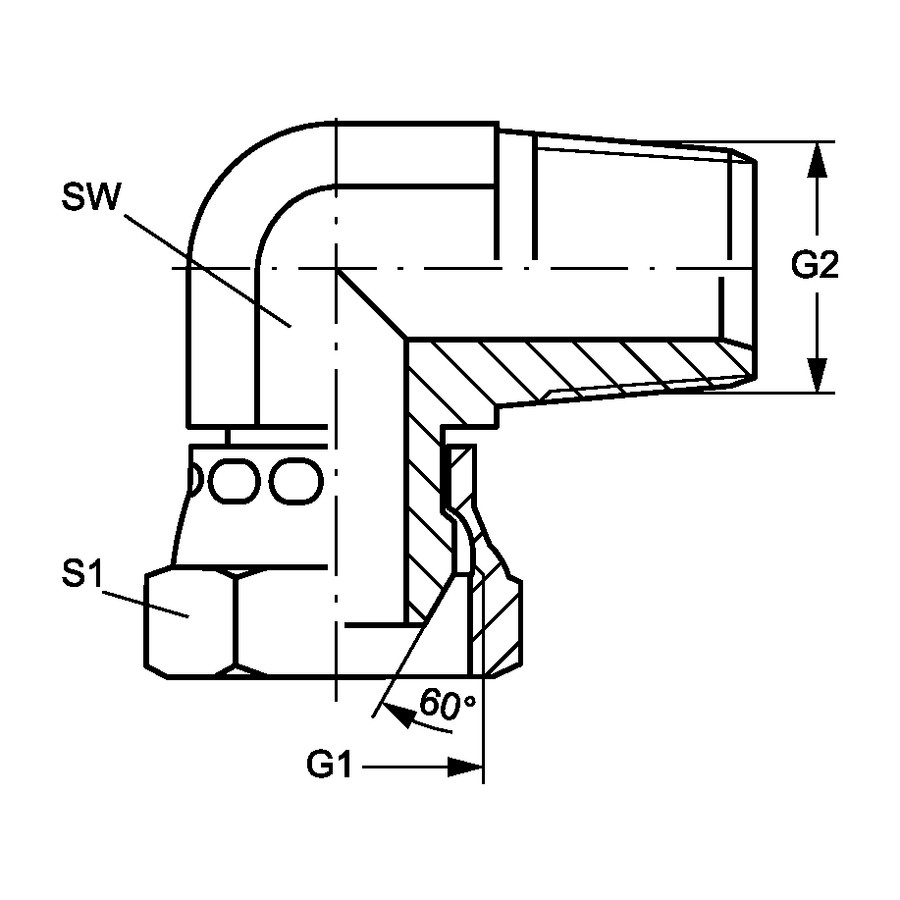

Code	G1	G2	S1	SW (mm)
AD.90.NPT(M)1/8.NPT(F)1/8	NPT 1/8" -27	NPT 1/8" -27	14	11
AD.90.NPT(M)1/8.NPT(F)1/4	NPT 1/4" -18	NPT 1/8" -27	18	14
AD.90.NPT(M)1/4.NPT(F)1/4	NPT 1/4" -18	NPT 1/4" -18	18	14
AD.90.NPT(M)3/8.NPT(F)1/4	NPT 1/4" -18	NPT 3/8" -18	18	19
AD.90.NPT(M)1/2.NPT(F)1/4	NPT 1/4" -18	NPT 1/2" -14	18	19
AD.90.NPT(M)1/4.NPT(F)3/8	NPT 3/8" -18	NPT 1/4" -18	22	19
AD.90.NPT(M)3/8.NPT(F)3/8	NPT 3/8" -18	NPT 3/8" -18	22	19
AD.90.NPT(M)1/2.NPT(F)3/8	NPT 3/8" -18	NPT 1/2" -14	22	22
AD.90.NPT(M)3/4.NPT(F)3/8	NPT 3/8" -18	NPT 3/4" -14	22	25
AD.90.NPT(M)3/8.NPT(F)1/2	NPT 1/2" -14	NPT 3/8" -18	25	22
AD.90.NPT(M)1/2.NPT(F)1/2	NPT 1/2" -14	NPT 1/2" -14	25	22
AD.90.NPT(M)3/4.NPT(F)1/2	NPT 1/2" -14	NPT 3/4" -14	25	27
AD.90.NPT(M)1/2.NPT(F)3/4	NPT 3/4" -14	NPT 1/2" -14	32	27
AD.90.NPT(M)3/4.NPT(F)3/4	NPT 3/4" -14	NPT 3/4" -14	32	27
AD.90.NPT(M)1.NPT(F)3/4	NPT 3/4" -14	NPT 1" -11.5	32	33
AD.90.NPT(M)3/4.NPT(F)1	NPT 1" -11.5	NPT 3/4" -14	38	33
AD.90.NPT(M)1.NPT(F)1	NPT 1" -11.5	NPT 1" -11.5	38	33
AD.90.NPT(M)1-1/4.NPT(F)1-1/4	NPT 1.1/4" -11.5	NPT 1.1/4" -11.5	48	41
AD.90.NPT(M)1-1/2.NPT(F)1-1/4	NPT 1.1/4" -11.5	NPT 1.1/2" -11.5	48	48
AD.90.NPT(M)1-1/2.NPT(F)1-1/2	NPT 1.1/2" -11.5	NPT 1.1/2" -11.5	54	48
AD.90.NPT(M)2.NPT(F)2	NPT 2" -11.5	NPT 2" -11.5	67	64
