*Внешний вид изделия может отличаться от изображения

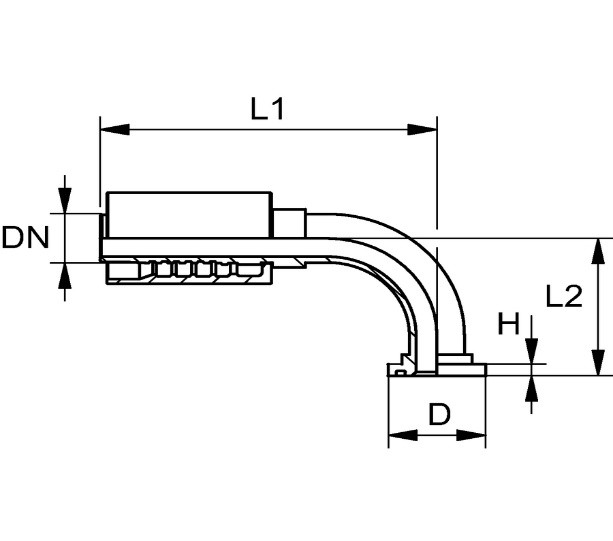

Фланцевый фитинг Interlock SFL SAE 3000 PSI для рукавов R15, угол 90°
| Code | D (mm) | DN | dx | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.IL.R15.SFL.90.12.12 | 30,2 | 12 | 9 | 6,7 | 85,9 | 45,0 | 1/2" | 8 | 1/2" | 0,2 |
| FT.IL.R15.SFL.90.12.19 | 38,1 | 12 | 9 | 6,7 | 96,0 | 51,0 | 1/2" | 8 | 3/4" | 0,3 |
| FT.IL.R15.SFL.90.19.19 | 38,1 | 19 | 14 | 6,8 | 127,5 | 58,0 | 3/4" | 12 | 3/4" | 0,54 |
| FT.IL.R15.SFL.90.19.19.L95 | 38,1 | 19 | 14 | 6,8 | 127,5 | 95,0 | 3/4" | 12 | 3/4" | 0,58 |
| FT.IL.R15.SFL.90.19.19.L100 | 38,1 | 19 | 14 | 6,8 | 127,5 | 100,0 | 3/4" | 12 | 3/4" | 0,62 |
| FT.IL.R15.SFL.90.19.19.L120 | 38,1 | 19 | 14 | 6,8 | 127,5 | 120,0 | 3/4" | 12 | 3/4" | 0,65 |
| FT.IL.R15.SFL.90.19.25 | 44,5 | 19 | 14 | 8,1 | 127,5 | 61,0 | 3/4" | 12 | 1" | 0,59 |
| FT.IL.R15.SFL.90.19.25.L82 | 44,5 | 19 | 14 | 8,1 | 127,5 | 82,0 | 3/4" | 12 | 1" | 0,65 |
| FT.IL.R15.SFL.90.25.19 | 38,1 | 25 | 19 | 6,8 | 144,0 | 64,5 | 1" | 16 | 3/4" | 0,812 |
| FT.IL.R15.SFL.90.25.25 | 44,5 | 25 | 19 | 8,1 | 158,0 | 67,0 | 1" | 16 | 1" | 0,902 |
| FT.IL.R15.SFL.90.25.31 | 50,8 | 25 | 19 | 8,1 | 158,0 | 69,5 | 1" | 16 | 1.1/4" | 0,948 |
| FT.IL.R15.SFL.90.31.25 | 44,5 | 31 | 25 | 8,0 | 162,0 | 76,0 | 1.1/4" | 20 | 1" | 1,10 |
| FT.IL.R15.SFL.90.31.31 | 50,8 | 31 | 25 | 8,0 | 173,0 | 88,0 | 1.1/4" | 20 | 1.1/4" | 1,317 |
| FT.IL.R15.SFL.90.31.38 | 60,3 | 31 | 25 | 8,0 | 177,0 | 95,0 | 1.1/4" | 20 | 1.1/2" | 1,621 |
| FT.IL.R15.SFL.90.38.31 | 50,8 | 38 | 27 | 8,1 | 190,5 | 93,0 | 1.1/2" | 24 | 1.1/4" | 1,888 |
| FT.IL.R15.SFL.90.38.38 | 60,3 | 38 | 27 | 8,1 | 208,5 | 99,0 | 1.1/2" | 24 | 1.1/2" | 2,471 |
| FT.IL.R15.SFL.90.38.51 | 71,4 | 38 | 27 | 9,6 | 218,0 | 104,0 | 1.1/2" | 24 | 2" | 2,85 |
