Фланцевый фитинг Interlock SFS SAE 6000 PSI для рукавов R15, угол 45°

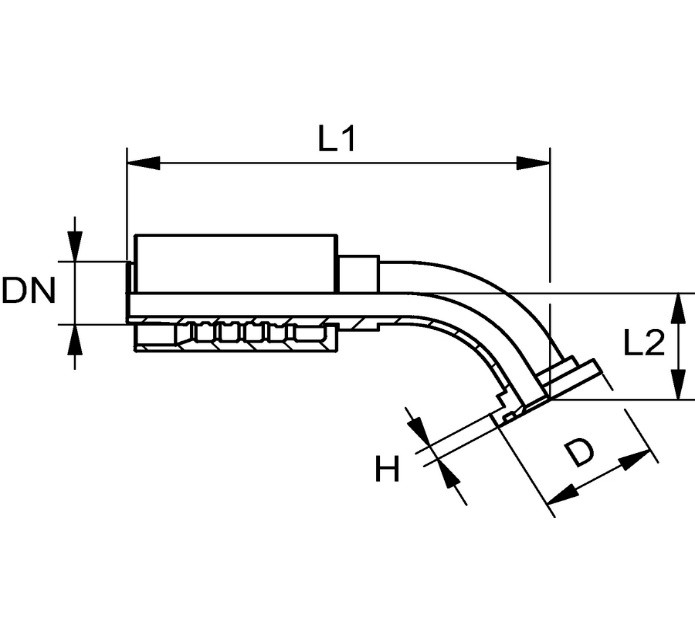

| Code | D (mm) | DN | dx | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.IL.R15.SFS.45.12.12 | 31,8 | 12 | 9 | 7,7 | 95,5 | 23,0 | 1/2" | 8 | 1/2" | 0,2 |
| FT.IL.R15.SFS.45.12.19 | 41,3 | 12 | 9 | 8,8 | 99,9 | 23,0 | 1/2" | 8 | 3/4" | 0,25 |
| FT.IL.R15.SFS.45.16.12 | 31,8 | 16 | 12 | 7,7 | 114,0 | 21,5 | 5/8" | 10 | 1/2" | 0,27 |
| FT.IL.R15.SFS.45.16.19 | 41,3 | 16 | 12 | 8,8 | 117,5 | 25,0 | 5/8" | 10 | 3/4" | 0,30 |
| FT.IL.R15.SFS.45.16.25 | 47,6 | 16 | 12 | 9,5 | 121,0 | 29,0 | 5/8" | 10 | 1" | 0,35 |
| FT.IL.R15.SFS.45.19.19 | 41,3 | 19 | 14 | 8,8 | 135,3 | 30,2 | 3/4" | 12 | 3/4" | 0,483 |
| FT.IL.R15.SFS.45.19.19.L52 | 41,3 | 19 | 14 | 8,8 | 160,0 | 52,0 | 3/4" | 12 | 3/4" | 0,592 |
| FT.IL.R15.SFS.45.19.19.L75 | 41,3 | 19 | 14 | 8,8 | 183,0 | 75,0 | 3/4" | 12 | 3/4" | 0,661 |
| FT.IL.R15.SFS.45.19.19.L100 | 41,3 | 19 | 14 | 8,8 | 222,0 | 100,0 | 3/4" | 12 | 3/4" | 0,70 |
| FT.IL.R15.SFS.45.19.25 | 47,6 | 19 | 14 | 9,5 | 139,6 | 34,4 | 3/4" | 12 | 1" | 0,617 |
| FT.IL.R15.SFS.45.25.19 | 41,3 | 25 | 19 | 8,8 | 154,0 | 32,5 | 1" | 16 | 3/4" | 0,617 |
| FT.IL.R15.SFS.45.25.25 | 47,6 | 25 | 19 | 9,5 | 136,9 | 33,6 | 1" | 16 | 1" | 0,873 |
| FT.IL.R15.SFS.45.25.31 | 54,0 | 25 | 19 | 10,3 | 168,9 | 38,5 | 1" | 16 | 1.1/4" | 1,006 |
| FT.IL.R15.SFS.45.31.25 | 47,6 | 31 | 25 | 9,5 | 173,5 | 38,0 | 1.1/4" | 20 | 1" | 1,192 |
| FT.IL.R15.SFS.45.31.31 | 54,0 | 31 | 25 | 10,3 | 187,0 | 44,0 | 1.1/4" | 20 | 1.1/4" | 1,258 |
| FT.IL.R15.SFS.45.31.38 | 63,5 | 31 | 25 | 12,6 | 191,5 | 47,5 | 1.1/4" | 20 | 1.1/2" | 1,4 |
| FT.IL.R15.SFS.45.38.31 | 54,0 | 38 | 27 | 10,3 | 193,0 | 100,0 | 1.1/2" | 24 | 1.1/4" | 1,4 |
| FT.IL.R15.SFS.45.38.38 | 63,5 | 38 | 27 | 12,6 | 222,5 | 49,0 | 1.1/2" | 24 | 1.1/2" | 1,7 |
| FT.IL.R15.SFS.45.38.51 | 79,4 | 38 | 27 | 12,6 | 236,0 | 61,0 | 1.1/2" | 24 | 2" | 2,22 |
| FT.IL.R15.SFS.45.51.51 | 79,4 | 51 | 42 | 12,6 | 274,0 | 56,0 | 2" | 32 | 2" | 2,37 |
