*Внешний вид изделия может отличаться от изображения

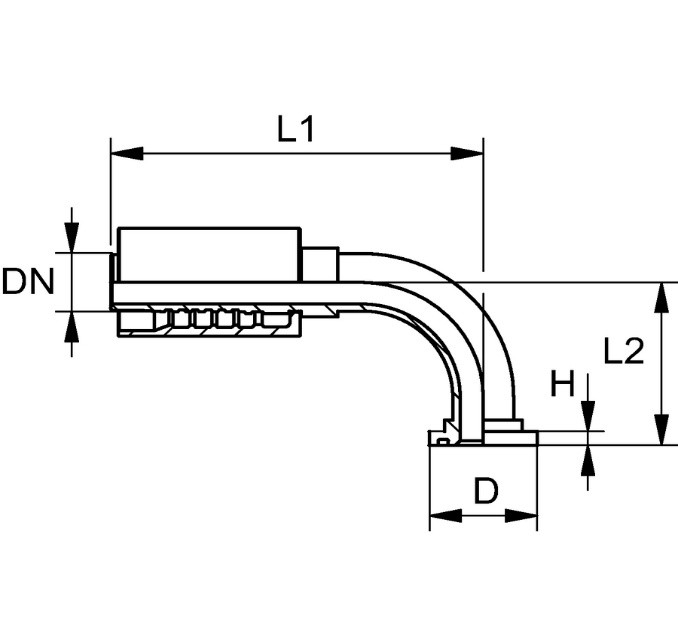

Фланцевый фитинг Interlock SFS SAE 6000 PSI для рукавов R15, угол 90°
| Code | D (mm) | DN | dx | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.IL.R15.SFS.90.12.12 | 31,8 | 12 | 9 | 7,7 | 86,0 | 46,0 | 1/2" | 8 | 1/2" | 0,20 |
| FT.IL.R15.SFS.90.12.19 | 41,3 | 12 | 9 | 8,8 | 92,5 | 46,0 | 1/2" | 8 | 3/4" | 0,25 |
| FT.IL.R15.SFS.90.16.12 | 31,8 | 16 | 12 | 7,7 | 108,0 | 48,0 | 5/8" | 10 | 1/2" | 0,292 |
| FT.IL.R15.SFS.90.16.19 | 41,3 | 16 | 12 | 8,8 | 107,5 | 52,5 | 5/8" | 10 | 3/4" | 0,364 |
| FT.IL.R15.SFS.90.16.25 | 47,6 | 16 | 12 | 9,5 | 108,0 | 57,0 | 5/8" | 10 | 1" | 0,432 |
| FT.IL.R15.SFS.90.19.12.L80 | 31,8 | 19 | 14 | 7,7 | 117,0 | 80,0 | 3/4" | 12 | 1/2" | 0,28 |
| FT.IL.R15.SFS.90.19.12.L100 | 31,8 | 19 | 14 | 7,7 | 117,0 | 100,0 | 3/4" | 12 | 1/2" | 0,32 |
| FT.IL.R15.SFS.90.19.19 | 41,3 | 19 | 14 | 8,8 | 127,5 | 52,0 | 3/4" | 12 | 3/4" | 0,578 |
| FT.IL.R15.SFS.90.19.19.L52 | 41,3 | 19 | 14 | 8,8 | 127,5 | 80,0 | 3/4" | 12 | 3/4" | 0,45 |
| FT.IL.R15.SFS.90.19.19.L80 | 41,3 | 19 | 14 | 8,8 | 127,5 | 85,0 | 3/4" | 12 | 3/4" | 0,48 |
| FT.IL.R15.SFS.90.19.19.L85 | 41,3 | 19 | 14 | 8,8 | 127,5 | 100,0 | 3/4" | 12 | 3/4" | 0,50 |
| FT.IL.R15.SFS.90.19.19.L100 | 41,3 | 19 | 14 | 8,8 | 127,5 | 150,0 | 3/4" | 12 | 3/4" | 0,663 |
| FT.IL.R15.SFS.90.19.19.L150 | 41,3 | 19 | 14 | 8,8 | 127,5 | 68,0 | 3/4" | 12 | 3/4" | 0,70 |
| FT.IL.R15.SFS.90.25.19 | 41,3 | 25 | 19 | 8,8 | 152,5 | 70,5 | 1" | 16 | 3/4" | 0,838 |
| FT.IL.R15.SFS.90.25.25 | 47,6 | 25 | 19 | 9,5 | 158,0 | 74,0 | 1" | 16 | 1" | 0,954 |
| FT.IL.R15.SFS.90.25.25.L100 | 47,6 | 25 | 19 | 9,5 | 158,0 | 100,0 | 1" | 16 | 1" | 1,10 |
| FT.IL.R15.SFS.90.25.25.L200 | 47,6 | 25 | 19 | 9,5 | 158,0 | 200,0 | 1" | 16 | 1" | 1,3 |
| FT.IL.R15.SFS.90.25.31 | 54,0 | 25 | 27 | 10,3 | 156,0 | 83,5 | 1" | 16 | 1.1/4" | 1,37 |
| FT.IL.R15.SFS.90.31.25 | 47,6 | 31 | 25 | 9,5 | 162,0 | 80,0 | 1.1/4" | 20 | 1" | 1,37 |
| FT.IL.R15.SFS.90.31.31 | 54,0 | 31 | 25 | 10,3 | 173,5 | 94,5 | 1.1/4" | 20 | 1.1/4" | 1,398 |
| FT.IL.R15.SFS.90.31.31.L120 | 54,0 | 31 | 25 | 10,3 | 173,5 | 120,0 | 1.1/4" | 20 | 1.1/4" | 1,739 |
| FT.IL.R15.SFS.90.31.38 | 63,5 | 31 | 25 | 12,6 | 174,5 | 100,0 | 1.1/4" | 20 | 1.1/2" | 1,831 |
| FT.IL.R15.SFS.90.38.31 | 54,0 | 38 | 27 | 10,3 | 193,0 | 100,0 | 1.1/2" | 24 | 1.1/4" | 2,052 |
| FT.IL.R15.SFS.90.38.38 | 63,5 | 38 | 27 | 12,6 | 213,5 | 110,0 | 1.1/2" | 24 | 1.1/2" | 2,699 |
| FT.IL.R15.SFS.90.38.51 | 79,4 | 38 | 27 | 12,6 | 215,5 | 126,0 | 1.1/2" | 24 | 2" | 3,34 |
| FT.IL.R15.SFS.90.51.51 | 79,4 | 51 | 42 | 12,6 | 268,0 | 138,0 | 2" | 32 | 2" | 4,822 |
