*Внешний вид изделия может отличаться от изображения

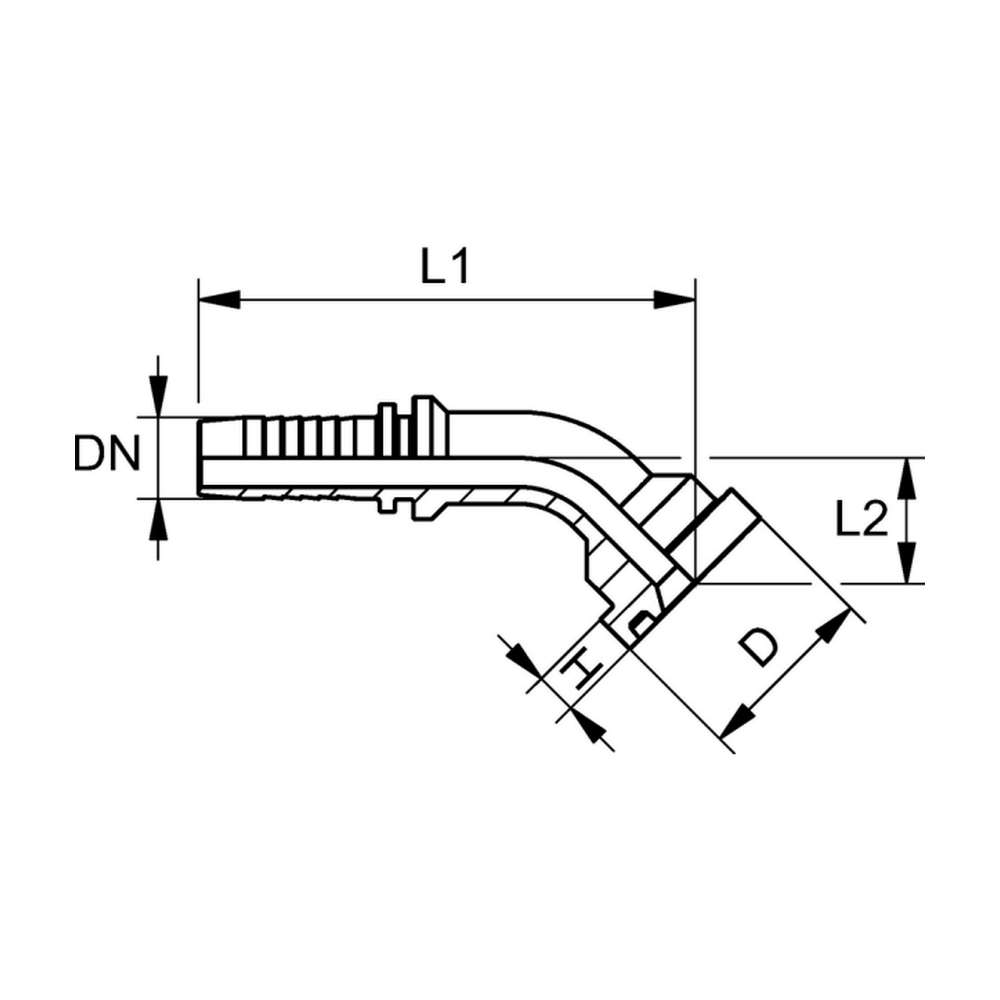

Фланцевый фитинг SFL SAE 3000 PSI, угол 45°
| Code | D (mm) | DN | dx (mm) | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.SFL.45.12.12 | 30,2 | 12 | 9,5 | 6,70 | 81,0 | 21,0 | 1/2" | 8 | 1/2" | 0,1 |
| FT.SFL.45.12.19 | 38,1 | 12 | 9,5 | 6,70 | 84,5 | 24,0 | 1/2" | 8 | 3/4" | 0,154 |
| FT.SFL.45.16.12 | 30,2 | 16 | 12,5 | 6,70 | 101,0 | 28,0 | 5/8" | 10 | 1/2" | 0,16 |
| FT.SFL.45.16.19 | 38,1 | 16 | 12,5 | 6,70 | 96,5 | 28,5 | 5/8" | 10 | 3/4" | 0,181 |
| FT.SFL.45.19.19 | 38,1 | 19 | 15 | 6,70 | 107,5 | 28,0 | 3/4" | 12 | 3/4" | 0,188 |
| FT.SFL.45.19.25 | 44,4 | 19 | 15 | 8,00 | 110,0 | 28,0 | 3/4" | 12 | 1" | 0,273 |
| FT.SFL.45.25.19 | 38,1 | 25 | 19,5 | 6,70 | 128,0 | 33,0 | 1" | 16 | 3/4" | 0,35 |
| FT.SFL.45.25.25 | 44,4 | 25 | 19,5 | 8,00 | 132,0 | 30,5 | 1" | 16 | 1" | 0,335 |
| FT.SFL.45.25.31 | 50,8 | 25 | 19,5 | 8,00 | 135,0 | 31,0 | 1" | 16 | 1.1/4" | 0,442 |
| FT.SFL.45.31.25 | 44,4 | 31 | 26 | 8,00 | 157,0 | 41,0 | 1.1/4" | 20 | 1" | 0,5 |
| FT.SFL.45.31.31 | 50,8 | 31 | 26 | 8,00 | 154,0 | 34,0 | 1.1/4" | 20 | 1.1/4" | 0,484 |
| FT.SFL.45.31.38 | 60,3 | 31 | 26 | 8,00 | 160,0 | 40,0 | 1.1/4" | 20 | 1.1/2" | 0,46 |
| FT.SFL.45.38.38 | 60,3 | 38 | 32 | 8,00 | 179,5 | 42,0 | 1.1/2" | 24 | 1.1/2" | 0,659 |
| FT.SFL.45.38.51 | 71,4 | 38 | 32 | 9,50 | 184,0 | 46,0 | 1.1/2" | 24 | 2" | 0,873 |
| FT.SFL.45.51.38 | 60,3 | 51 | 42 | 8,00 | 207,0 | 54,0 | 2" | 32 | 1.1/2" | 1,25 |
| FT.SFL.45.51.51 | 71,4 | 51 | 42 | 9,50 | 217,0 | 50,0 | 2" | 32 | 2" | 1,022 |
| FT.SFL.45.51.60 | 84,0 | 51 | 42 | 9,50 | 210,0 | 56,0 | 2" | 32 | 2.1/2" | 1,75 |
| FT.SFL.45.60.60 | 84,0 | 60 | 53 | 9,50 | 239,0 | 51,0 | 2.1/2" | 40 | 2.1/2" | 2 |
| FT.SFL.45.76.60 | 84,0 | 76 | 65 | 9,53 | 238,0 | 70,0 | 3" | 48 | 2.1/2" | 2,82 |
| FT.SFL.45.76.76 | 101,6 | 76 | 65 | 9,53 | 225,0 | 53,0 | 3" | 48 | 3" | 2,77 |
