*Внешний вид изделия может отличаться от изображения

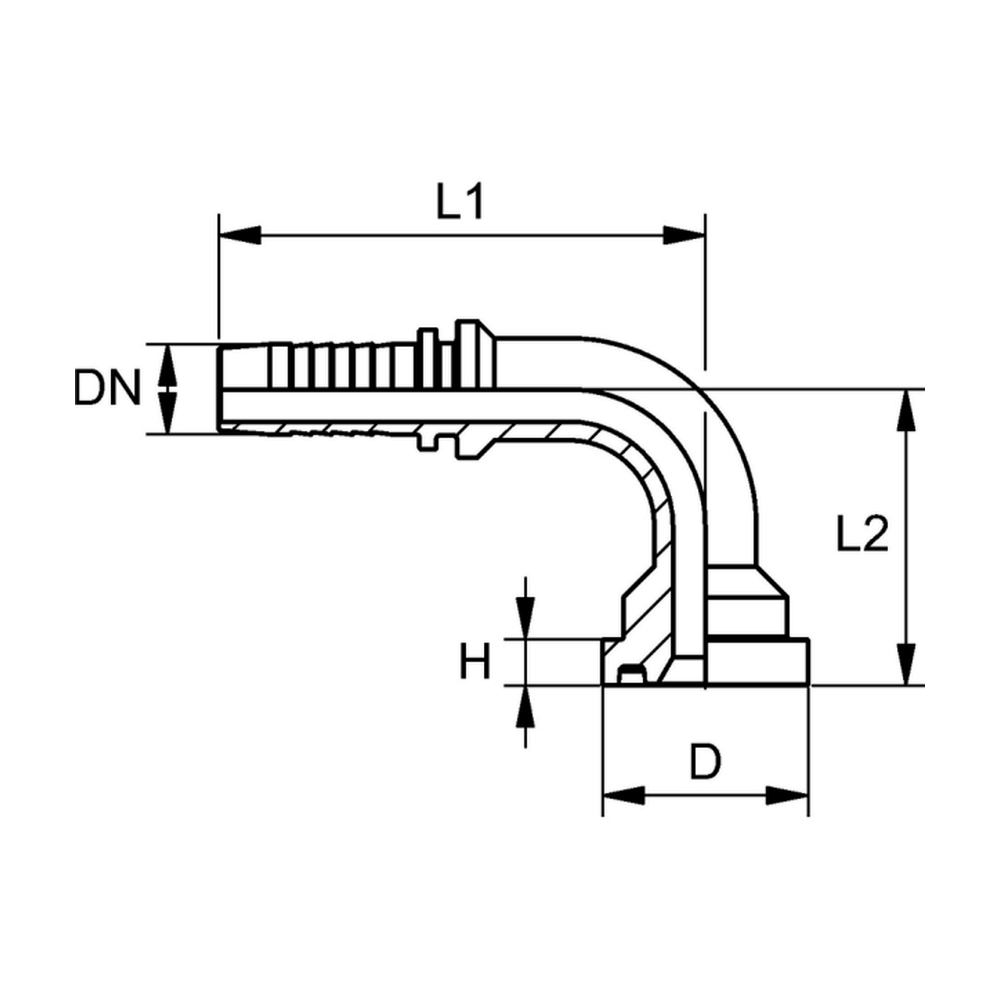

Фланцевый фитинг SFL SAE 3000 PSI, угол 90°
| Code | D (mm) | DN | dx (mm) | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.SFL.90.12.12 | 30,2 | 12 | 9,5 | 6,70 | 71,5 | 43,5 | 1/2" | 8 | 1/2" | 0,109 |
| FT.SFL.90.12.19 | 38,1 | 12 | 9,5 | 6,70 | 72,5 | 47,5 | 1/2" | 8 | 3/4" | 0,223 |
| FT.SFL.90.12.25 | 44,5 | 12 | 9,5 | 8,00 | 87,0 | 63,0 | 1/2" | 8 | 1" | 0,295 |
| FT.SFL.90.16.12 | 30,2 | 16 | 12,5 | 6,70 | 91,0 | 58,0 | 5/8" | 10 | 1/2" | 0,19 |
| FT.SFL.90.16.19 | 38,1 | 16 | 12,5 | 6,70 | 87,0 | 55,0 | 5/8" | 10 | 3/4" | 0,227 |
| FT.SFL.90.16.25 | 44,5 | 16 | 12,5 | 8,00 | 104,0 | 67,0 | 5/8" | 10 | 1" | 0,4 |
| FT.SFL.90.19.19 | 38,1 | 19 | 15 | 6,70 | 100,0 | 58,0 | 3/4" | 12 | 3/4" | 0,205 |
| FT.SFL.90.19.25 | 44,5 | 19 | 15 | 8,00 | 99,0 | 60,0 | 3/4" | 12 | 1" | 0,308 |
| FT.SFL.90.19.31 | 50,8 | 19 | 15 | 8,00 | 121,0 | 75,0 | 3/4" | 12 | 1.1/4" | 0,55 |
| FT.SFL.90.25.19 | 38,1 | 25 | 19,5 | 6,70 | 114,0 | 63,0 | 1" | 16 | 3/4" | 0,4 |
| FT.SFL.90.25.25 | 44,5 | 25 | 19,5 | 8,00 | 126,0 | 67,5 | 1" | 16 | 1" | 0,45 |
| FT.SFL.90.25.31 | 50,8 | 25 | 19,5 | 8,00 | 126,0 | 70,0 | 1" | 16 | 1.1/4" | 0,47 |
| FT.SFL.90.25.38 | 60,3 | 25 | 19,5 | 8,00 | 148,0 | 95,0 | 1" | 16 | 1.1/2" | 0,85 |
| FT.SFL.90.31.25 | 44,5 | 31 | 26 | 8,00 | 132,0 | 75,0 | 1.1/4" | 20 | 1" | 0,55 |
| FT.SFL.90.31.31 | 50,8 | 31 | 26 | 8,00 | 150,5 | 79,0 | 1.1/4" | 20 | 1.1/4" | 0,535 |
| FT.SFL.90.31.31.L88 | 50,8 | 31 | 26 | 8,00 | 114,0 | 88,0 | 1.1/4" | 20 | 1.1/4" | 0,7 |
| FT.SFL.90.31.31.L120 | 50,8 | 31 | 26 | 8,00 | 144,0 | 120,0 | 1.1/4" | 20 | 1.1/4" | 0,75 |
| FT.SFL.90.31.38 | 60,3 | 31 | 26 | 8,00 | 150,5 | 84,5 | 1.1/4" | 20 | 1.1/2" | 0,691 |
| FT.SFL.90.38.38 | 60,3 | 38 | 32 | 8,00 | 175,5 | 94,0 | 1.1/2" | 24 | 1.1/2" | 0,76 |
| FT.SFL.90.38.38.L80 | 60,3 | 38 | 32 | 8,00 | 159,0 | 80,0 | 1.1/2" | 24 | 1.1/2" | 0,9 |
| FT.SFL.90.38.38.L100 | 60,3 | 38 | 32 | 8,00 | 159,0 | 100,0 | 1.1/2" | 24 | 1.1/2" | 1 |
| FT.SFL.90.38.38.L124 | 60,3 | 38 | 32 | 8,00 | 159,0 | 124,0 | 1.1/2" | 24 | 1.1/2" | 1,1 |
| FT.SFL.90.38.38.L144 | 60,3 | 38 | 32 | 8,00 | 183,0 | 144,0 | 1.1/2" | 24 | 1.1/2" | 1,3 |
| FT.SFL.90.38.38.L150 | 60,3 | 38 | 32 | 8,00 | 159,0 | 150,0 | 1.1/2" | 24 | 1.1/2" | 1,5 |
| FT.SFL.90.38.51 | 71,4 | 38 | 32 | 9,50 | 175,5 | 100,0 | 1.1/2" | 24 | 2" | 1,177 |
| FT.SFL.90.38.51.L150 | 71,4 | 38 | 32 | 9,50 | 183,0 | 150,0 | 1.1/2" | 24 | 2" | 1,5 |
| FT.SFL.90.51.38 | 60,3 | 51 | 42 | 8,00 | 199,0 | 123,0 | 2" | 32 | 1.1/2" | 1,55 |
| FT.SFL.90.51.38.L115 | 60,3 | 51 | 42 | 8,00 | 197,0 | 115,0 | 2" | 32 | 1.1/2" | 1,7 |
| FT.SFL.90.51.51 | 71,4 | 51 | 42 | 9,50 | 217,0 | 118,0 | 2" | 32 | 2" | 1,223 |
| FT.SFL.90.51.51.L120 | 71,4 | 51 | 42 | 9,50 | 197,0 | 120,0 | 2" | 32 | 2" | 1,8 |
| FT.SFL.90.51.51.L140 | 71,4 | 51 | 42 | 9,50 | 197,0 | 140,0 | 2" | 32 | 2" | 1,9 |
| FT.SFL.90.51.51.L160 | 71,4 | 51 | 42 | 9,50 | 197,0 | 160,0 | 2" | 32 | 2" | 2 |
| FT.SFL.90.51.51.L170 | 71,4 | 51 | 42 | 9,50 | 197,0 | 170,0 | 2" | 32 | 2" | 2,1 |
| FT.SFL.90.51.51.L220 | 71,4 | 51 | 42 | 9,50 | 197,0 | 220,0 | 2" | 32 | 2" | 2,2 |
| FT.SFL.90.51.60 | 84,0 | 51 | 42 | 9,50 | 197,0 | 122,0 | 2" | 32 | 2.1/2" | 2 |
| FT.SFL.90.51.60.L200 | 84,1 | 51 | 42 | 9,50 | 197,0 | 200,0 | 2" | 32 | 2.1/2" | 2,3 |
| FT.SFL.90.60.51 | 71,4 | 60 | 42 | 9,50 | 201,0 | 122,0 | 2.1/2" | 40 | 2" | 1,95 |
| FT.SFL.90.60.60 | 84,0 | 60 | 42 | 9,50 | 240,0 | 130,0 | 2.1/2" | 40 | 2.1/2" | 2,4 |
| FT.SFL.90.60.60.L118 | 84,0 | 60 | 42 | 9,50 | 240,0 | 118,0 | 2.1/2" | 40 | 2.1/2" | 2,6 |
| FT.SFL.90.76.76 | 101,6 | 76 | 65 | 9,53 | 230,0 | 135,0 | 3" | 48 | 3" | 3,58 |
| FT.SFL.90.76.76.L120 | 101,6 | 76 | 65 | 9,53 | 240,0 | 120,0 | 3" | 48 | 3" | 3,75 |
