*Внешний вид изделия может отличаться от изображения

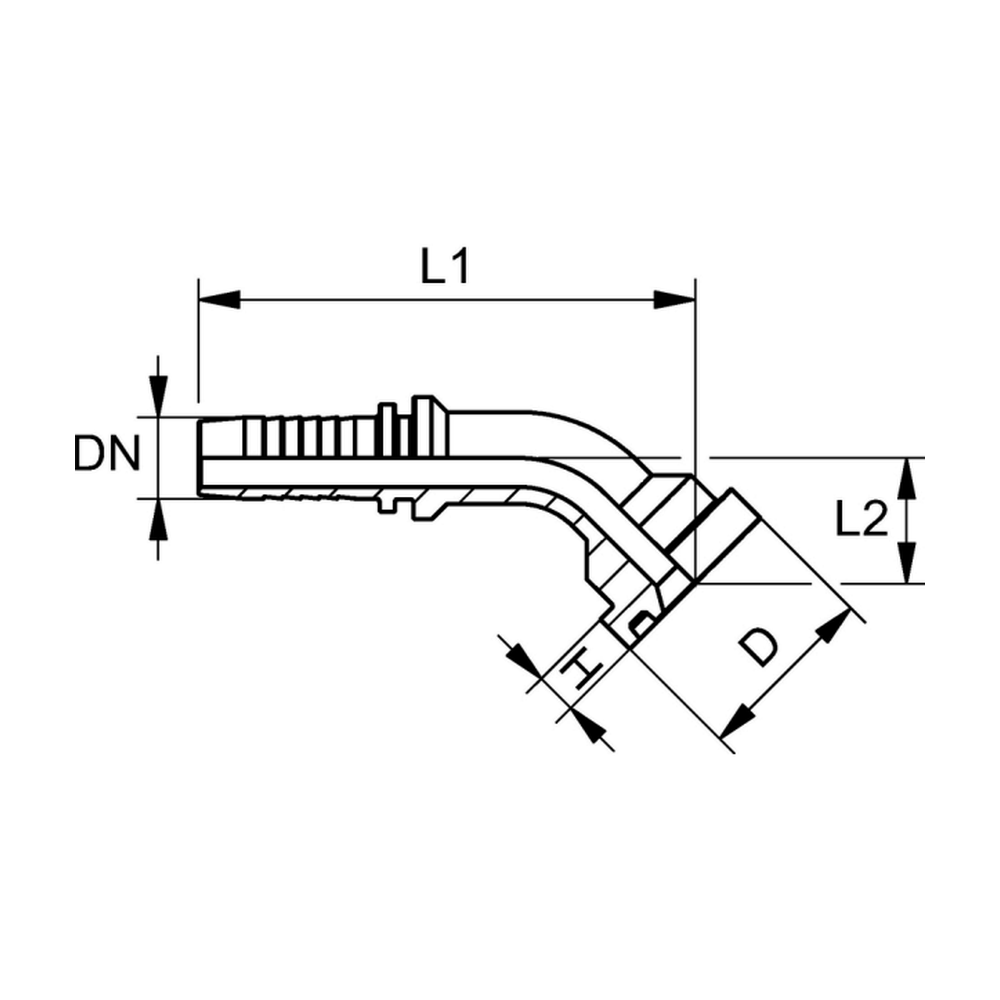

Фланцевый фитинг SFS SAE 6000 PSI, угол 45°
| Code | D (mm) | DN | dx (mm) | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.SFS.45.12.12 | 31,8 | 12 | 9,5 | 7,8 | 82,0 | 22,0 | 1/2" | 8 | 1/2" | 0,108 |
| FT.SFS.45.12.19 | 41,3 | 12 | 9,5 | 8,8 | 87,5 | 27,5 | 1/2" | 8 | 3/4" | 0,129 |
| FT.SFS.45.16.12 | 31,8 | 16 | 12,5 | 7,8 | 102,0 | 29,0 | 5/8" | 10 | 1/2" | 0,17 |
| FT.SFS.45.16.19 | 41,3 | 16 | 12,5 | 8,8 | 100,5 | 30,5 | 5/8" | 10 | 3/4" | 0,22 |
| FT.SFS.45.16.25 | 47,6 | 16 | 12,5 | 9,6 | 120,0 | 35,0 | 5/8" | 10 | 1" | 0,4 |
| FT.SFS.45.19.19 | 41,3 | 19 | 15 | 8,8 | 110,0 | 30,5 | 3/4" | 12 | 3/4" | 0,254 |
| FT.SFS.45.19.25 | 47,6 | 19 | 15 | 9,6 | 114,5 | 35,0 | 3/4" | 12 | 1" | 0,346 |
| FT.SFS.45.25.19 | 41,3 | 25 | 19,5 | 8,8 | 129,0 | 34,0 | 1" | 16 | 3/4" | 0,35 |
| FT.SFS.45.25.25 | 47,6 | 25 | 19,5 | 9,6 | 137,0 | 35,5 | 1" | 16 | 1" | 0,437 |
| FT.SFS.45.25.31 | 54,0 | 25 | 19,5 | 10,4 | 142,0 | 40,5 | 1" | 16 | 1.1/4" | 0,528 |
| FT.SFS.45.31.31 | 54,0 | 31 | 26 | 10,4 | 164,0 | 44,0 | 1.1/4" | 20 | 1.1/4" | 0,661 |
| FT.SFS.45.31.38 | 63,5 | 31 | 26 | 12,7 | 170,0 | 50,5 | 1.1/4" | 20 | 1.1/2" | 0,859 |
| FT.SFS.45.38.31 | 54,0 | 38 | 32 | 10,4 | 174,0 | 49,0 | 1.1/2" | 24 | 1.1/4" | 0,859 |
| FT.SFS.45.38.38 | 63,5 | 38 | 32 | 12,7 | 190,0 | 52,0 | 1.1/2" | 24 | 1.1/2" | 1,025 |
| FT.SFS.45.38.51 | 79,4 | 38 | 32 | 12,7 | 201,0 | 63,5 | 1.1/2" | 24 | 2" | 1,26 |
| FT.SFS.45.51.51 | 79,4 | 51 | 42 | 12,7 | 236,0 | 67,5 | 2" | 32 | 2" | 1,795 |
