*Внешний вид изделия может отличаться от изображения

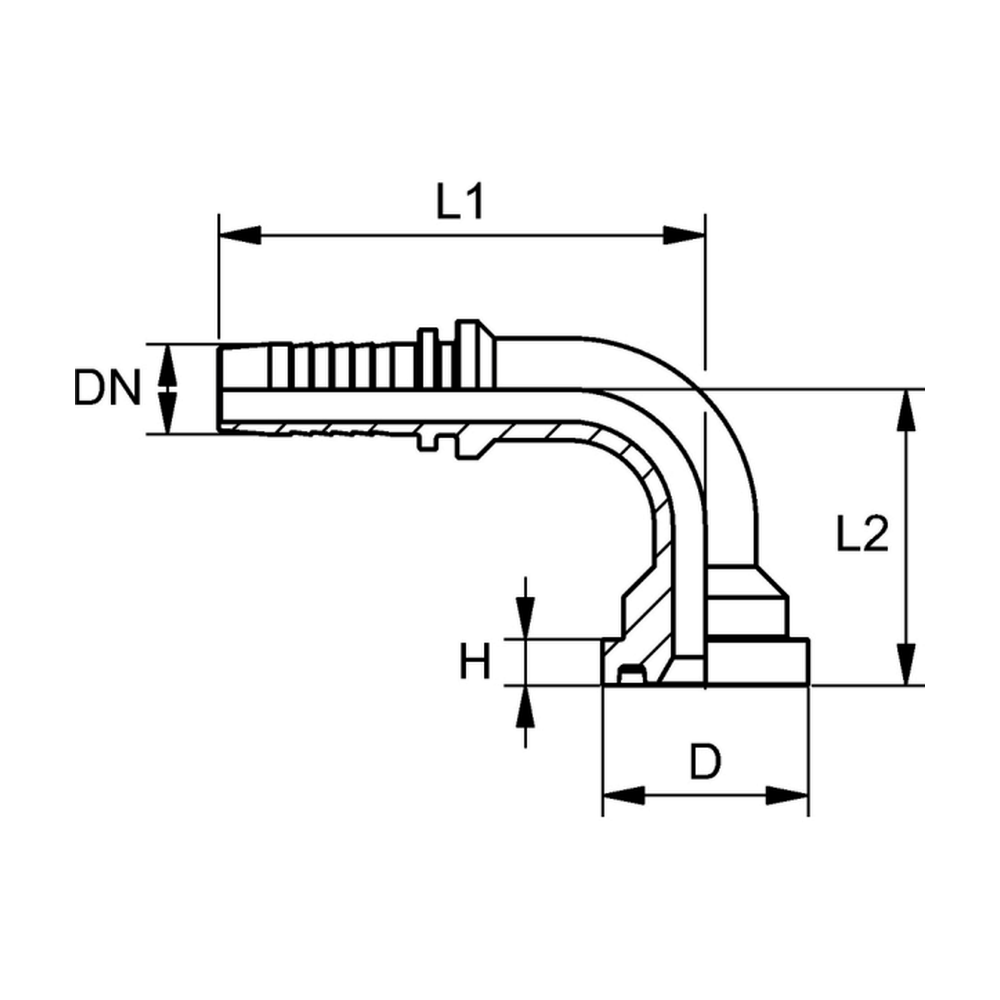

Фланцевый фитинг SFS SAE 6000 PSI, угол 90°
| Code | D (mm) | DN | dx (mm) | H (mm) | L1 (mm) | L2 (mm) | Дюймы | Размер | Размер фланца | Масса, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| FT.SFS.90.12.12 | 31,8 | 12 | 9,5 | 7,8 | 71,5 | 44,5 | 1/2" | 8 | 1/2" | 0,126 |
| FT.SFS.90.12.19 | 41,3 | 12 | 9,5 | 8,8 | 71,5 | 52,5 | 1/2" | 8 | 3/4" | 0,201 |
| FT.SFS.90.16.12 | 31,8 | 16 | 12,5 | 7,8 | 91,0 | 59,0 | 5/8" | 10 | 1/2" | 0,2 |
| FT.SFS.90.16.19 | 41,3 | 16 | 12,5 | 8,8 | 87,0 | 59,0 | 5/8" | 10 | 3/4" | 0,256 |
| FT.SFS.90.16.25 | 47,6 | 16 | 12,5 | 9,6 | 106,0 | 72,0 | 5/8" | 10 | 1" | 0,323 |
| FT.SFS.90.19.12 | 31,8 | 19 | 15 | 7,8 | 98,0 | 59,0 | 3/4" | 12 | 1/2" | 0,25 |
| FT.SFS.90.19.19 | 41,3 | 19 | 15 | 8,8 | 99,0 | 61,0 | 3/4" | 12 | 3/4" | 0,282 |
| FT.SFS.90.19.25 | 47,6 | 19 | 15 | 9,6 | 99,0 | 67,0 | 3/4" | 12 | 1" | 0,355 |
| FT.SFS.90.25.19 | 41,3 | 25 | 19,5 | 8,8 | 114,0 | 68,0 | 1" | 16 | 3/4" | 0,4 |
| FT.SFS.90.25.25 | 47,6 | 25 | 19,5 | 9,6 | 126,0 | 74,5 | 1" | 16 | 1" | 0,426 |
| FT.SFS.90.25.31 | 54,0 | 25 | 19,5 | 10,4 | 126,0 | 81,5 | 1" | 16 | 1.1/4" | 0,598 |
| FT.SFS.90.31.31.L80 | 54,0 | 31 | 26 | 10,4 | 144,0 | 80,0 | 1.1/4" | 20 | 1.1/4" | 0,7 |
| FT.SFS.90.31.25 | 47,6 | 31 | 26 | 9,6 | 132,0 | 76,0 | 1.1/4" | 20 | 1" | 0,55 |
| FT.SFS.90.31.31 | 54,0 | 31 | 26 | 10,4 | 150,5 | 90,5 | 1.1/4" | 20 | 1.1/4" | 0,792 |
| FT.SFS.90.31.38 | 63,5 | 31 | 26 | 12,7 | 150,5 | 99,0 | 1.1/4" | 20 | 1.1/2" | 0,974 |
| FT.SFS.90.38.31.L120 | 54,0 | 38 | 26 | 10,4 | 147,0 | 120,0 | 1.1/2" | 24 | 1.1/4" | 0,935 |
| FT.SFS.90.38.38 | 63,5 | 38 | 32 | 12,7 | 175,5 | 108,5 | 1.1/2" | 24 | 1.1/2" | 1,185 |
| FT.SFS.90.38.51 | 79,4 | 38 | 32 | 12,7 | 175,5 | 124,5 | 1.1/2" | 24 | 2" | 1,26 |
| FT.SFS.90.51.51 | 79,4 | 51 | 42 | 12,7 | 219,5 | 140,0 | 2" | 32 | 2" | 1,385 |
