*Внешний вид изделия может отличаться от изображения

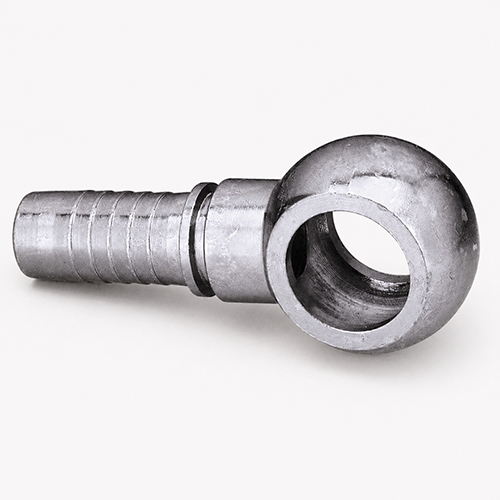

Фитинг-проушина под метрический полый винт

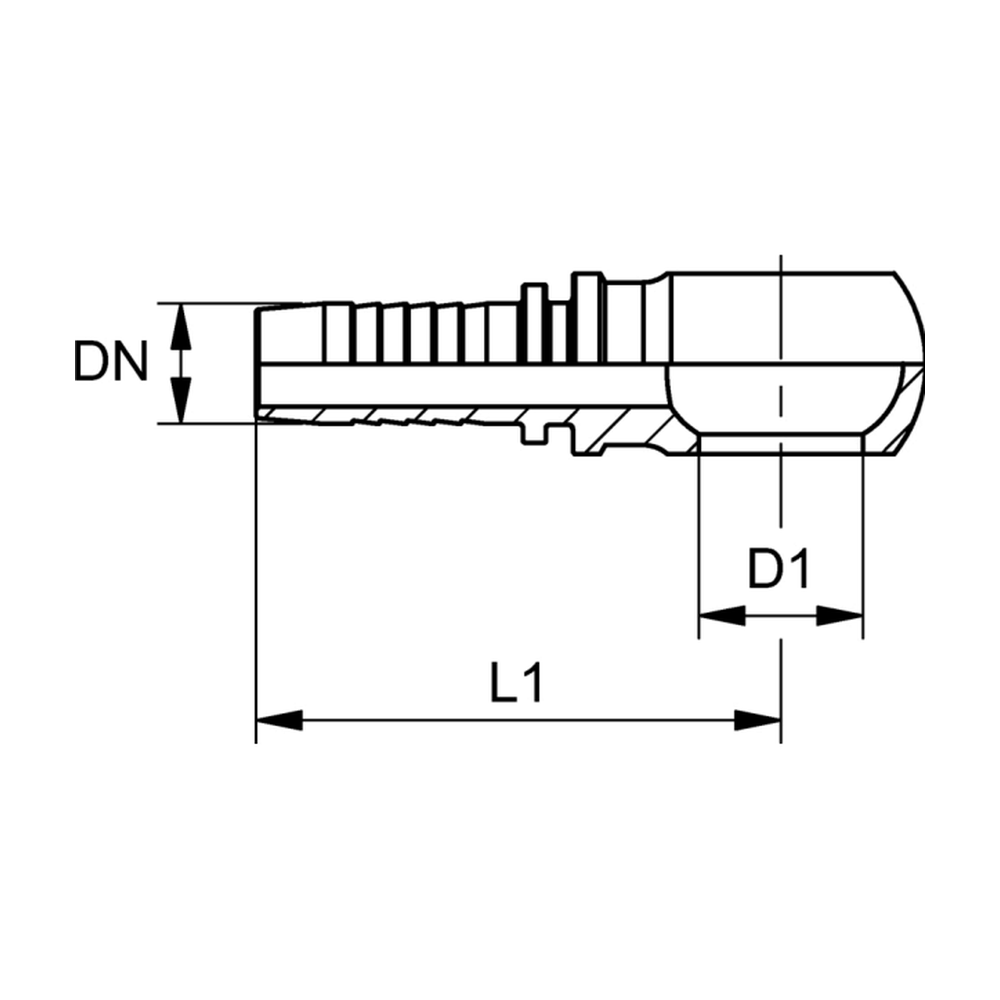

| Code | D1 (mm) | DN | dx (mm) | L1 (mm) | Для полого винта | Дюймы | Размер | Масса, кг |
|---|---|---|---|---|---|---|---|---|
| FT.EYE.M.05.10 | 10,1 | 5 | 3 | 42,0 | M 10 | 3/16" | 3 | 0,014 |
| FT.EYE.M.06.08 | 8,1 | 6 | 4 | 48,0 | M 8 | 1/4" | 4 | 0,025 |
| FT.EYE.M.06.10 | 10,1 | 6 | 4 | 48,0 | M 10 | 1/4" | 4 | 0,018 |
| FT.EYE.M.06.12 | 12,1 | 6 | 4 | 46,5 | M 12 | 1/4" | 4 | 0,022 |
| FT.EYE.M.06.14 | 14,1 | 6 | 4 | 49,5 | M 14 | 1/4" | 4 | 0,032 |
| FT.EYE.M.06.16 | 16,1 | 6 | 4 | 52,5 | M 16 | 1/4" | 4 | 0,032 |
| FT.EYE.M.08.10 | 10,1 | 8 | 5,5 | 48,0 | M 10 | 5/16" | 5 | 0,021 |
| FT.EYE.M.08.12 | 12,1 | 8 | 5,5 | 54,5 | M 12 | 5/16" | 5 | 0,025 |
| FT.EYE.M.08.14 | 14,1 | 8 | 5,5 | 54,5 | M 14 | 5/16" | 5 | 0,036 |
| FT.EYE.M.08.16 | 16,1 | 8 | 5,5 | 52,5 | M 16 | 5/16" | 5 | 0,047 |
| FT.EYE.M.08.18 | 18,1 | 8 | 5,5 | 55,5 | M 18 | 5/16" | 5 | 0,077 |
| FT.EYE.M.10.14 | 14,1 | 10 | 7 | 56,0 | M 14 | 3/8" | 6 | 0,039 |
| FT.EYE.M.10.16 | 16,1 | 10 | 7 | 54,0 | M 16 | 3/8" | 6 | 0,05 |
| FT.EYE.M.10.18 | 18,1 | 10 | 7 | 57,0 | M 18 | 3/8" | 6 | 0,076 |
| FT.EYE.M.12.18 | 18,1 | 12 | 9,5 | 58,0 | M 18 | 1/2" | 8 | 0,077 |
| FT.EYE.M.12.22 | 22,1 | 12 | 9,5 | 60,5 | M 22 | 1/2" | 8 | 0,095 |
| FT.EYE.M.16.18 | 18,1 | 16 | 12,5 | 68,5 | M 18 | 5/8" | 10 | 0,094 |
| FT.EYE.M.16.22 | 22,1 | 16 | 12,5 | 69,5 | M 22 | 5/8" | 10 | 0,103 |
| FT.EYE.M.16.26 | 26,1 | 16 | 12,5 | 72,0 | M 26 | 5/8" | 10 | 0,182 |
| FT.EYE.M.19.22 | 22,1 | 19 | 15 | 76,0 | M 22 | 3/4" | 12 | 0,2 |
| FT.EYE.M.19.26 | 26,1 | 19 | 15 | 78,5 | M 26 | 3/4" | 12 | 0,207 |
| FT.EYE.M.19.30 | 30,1 | 19 | 15 | 82,0 | M 30 | 3/4" | 12 | 0,248 |
| FT.EYE.M.25.30 | 30,1 | 25 | 19,5 | 90,0 | M 30 | 1" | 16 | 0,294 |
