*Внешний вид изделия может отличаться от изображения

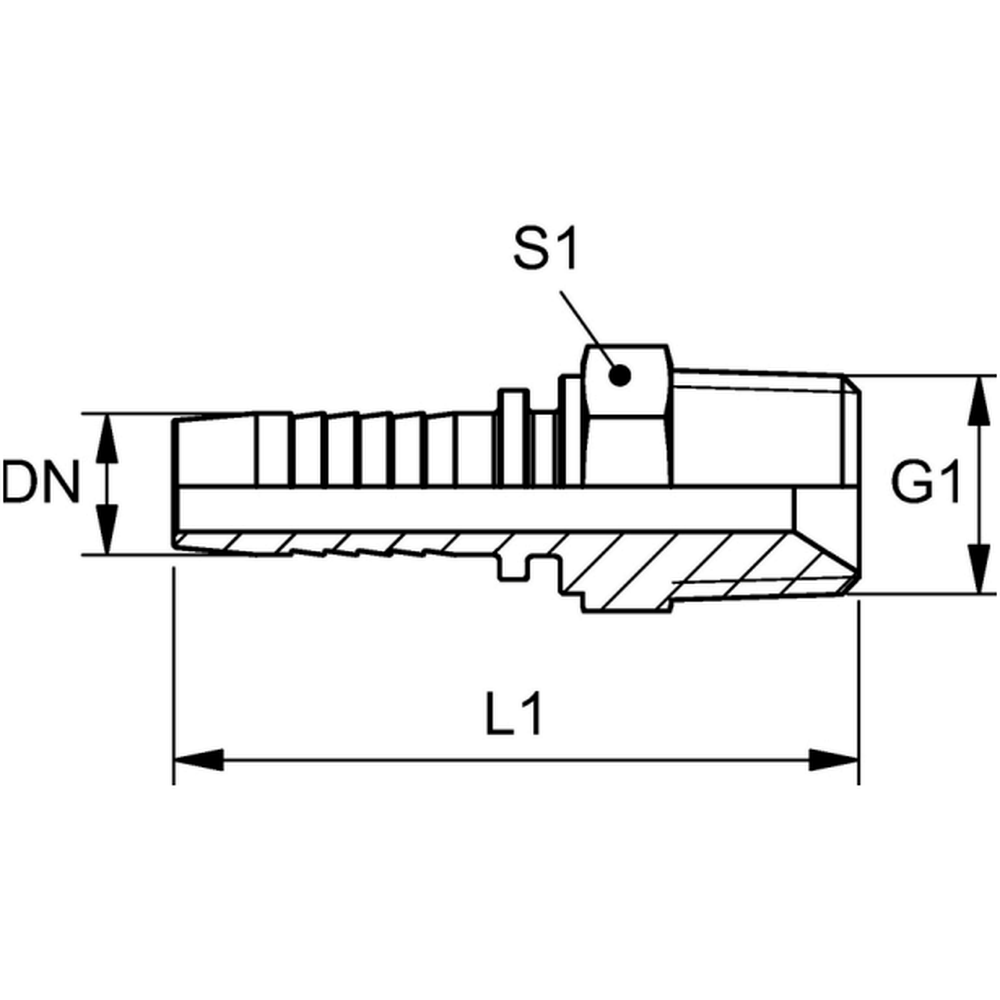

Фитинг DKJ, прямой
| Code | DN (mm) | G1 | dx (mm) | L1 (mm) | S1 | Дюймы | Размер | Масса, кг |
|---|---|---|---|---|---|---|---|---|
| FT.DKJ.00.05.06 | 5 | 7/16 -20 UNF" | 3 | 36,0 | 14 | 3/16" | 3 | 0,018 |
| FT.DKJ.00.06.06 | 6 | 7/16 -20 UNF" | 4 | 42,0 | 14 | 1/4" | 4 | 0,018 |
| FT.DKJ.00.06.08 | 6 | 1/2 -20 UNF" | 4 | 43,0 | 17 | 1/4" | 4 | 0,023 |
| FT.DKJ.00.06.10 | 6 | 9/16 -18 UNF" | 4 | 44,5 | 19 | 1/4" | 4 | 0,036 |
| FT.DKJ.00.08.08 | 8 | 1/2 -20 UNF" | 5,5 | 43,0 | 17 | 5/16" | 5 | 0,025 |
| FT.DKJ.00.08.10 | 8 | 9/16 -18 UNF" | 5,5 | 45,0 | 19 | 5/16" | 5 | 0,035 |
| FT.DKJ.00.08.12 | 8 | 3/4 -16 UNF" | 5,5 | 46,5 | 24 | 5/16" | 5 | 0,067 |
| FT.DKJ.00.10.08 | 10 | 1/2 -20 UNF" | 7 | 47,0 | 17 | 3/8" | 6 | 0,032 |
| FT.DKJ.00.10.10 | 10 | 9/16 -18 UNF" | 7 | 46,0 | 19 | 3/8" | 6 | 0,038 |
| FT.DKJ.00.10.12 | 10 | 3/4 -16 UNF" | 7 | 48,5 | 24 | 3/8" | 6 | 0,056 |
| FT.DKJ.00.10.16 | 10 | 7/8 -14 UNF" | 7 | 49,5 | 27 | 3/8" | 6 | 0,073 |
| FT.DKJ.00.12.12 | 12 | 3/4 -16 UNF" | 9,5 | 48,0 | 24 | 1/2" | 8 | 0,06 |
| FT.DKJ.00.12.10 | 12 | 9/16 -18 UNF" | 9,5 | 49,0 | 19 | 1/2" | 8 | 0,053 |
| FT.DKJ.00.12.16 | 12 | 7/8 -14 UNF" | 9,5 | 50,5 | 27 | 1/2" | 8 | 0,075 |
| FT.DKJ.00.12.19 | 12 | 1.1/16 -12 UN" | 9,5 | 51,0 | 32 | 1/2" | 8 | 0,107 |
| FT.DKJ.00.16.16 | 16 | 7/8 -14 UNF" | 12,5 | 53,5 | 27 | 5/8" | 10 | 0,082 |
| FT.DKJ.00.16.19 | 16 | 1.1/16 -12 UN" | 12,5 | 56,0 | 32 | 5/8" | 10 | 0,109 |
| FT.DKJ.00.19.16 | 19 | 7/8 -14 UNF" | 15 | 62,5 | 27 | 3/4" | 12 | 0,119 |
| FT.DKJ.00.19.19 | 19 | 1.1/16 -12 UN" | 15 | 63,0 | 32 | 3/4" | 12 | 0,124 |
| FT.DKJ.00.19.25 | 19 | 1.5/16 -12 UN" | 15 | 64,0 | 41 | 3/4" | 12 | 0,19 |
| FT.DKJ.00.25.19 | 25 | 1.1/16 -12 UN" | 19,5 | 71,0 | 32 | 1" | 16 | 0,222 |
| FT.DKJ.00.25.25 | 25 | 1.5/16 -12 UN" | 19,5 | 72,0 | 41 | 1" | 16 | 0,209 |
| FT.DKJ.00.25.31 | 25 | 1.5/8 -12 UN" | 19,5 | 74,0 | 50 | 1" | 16 | 0,37 |
| FT.DKJ.00.31.25 | 31 | 1.5/16 -12 UN" | 26 | 83,5 | 41 | 1.1/4" | 20 | 0,283 |
| FT.DKJ.00.31.31 | 31 | 1.5/8 -12 UN" | 26 | 82,0 | 50 | 1.1/4" | 20 | 0,399 |
| FT.DKJ.00.31.38 | 31 | 1.7/8 -12 UN" | 26 | 84,0 | 60 | 1.1/4" | 20 | 0,774 |
| FT.DKJ.00.38.31 | 38 | 1.5/8 -12 UN" | 32 | 88,0 | 50 | 1.1/2" | 24 | 0,457 |
| FT.DKJ.00.38.38 | 38 | 1.7/8 -12 UN" | 32 | 87,5 | 60 | 1.1/2" | 24 | 0,48 |
| FT.DKJ.00.51.51 | 51 | 2.1/2 -12 UN" | 42 | 108,0 | 75 | 2" | 32 | 1,004 |
